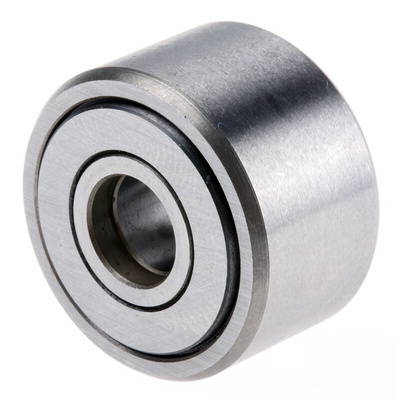

RS PRO Yoke Cam Follower 8mm ID, 24mm OD, Опорный ролик

RS PRO Yoke Cam Follower 8 mm ID, 24 mm OD

This yoke-type track roller from RS PRO has been designed to run on all types of tracks. You can use this specialised component to follow cams and tracks in a wide range of motion systems, including conveyor and linear guidance systems.


The yoke cam follower has a dynamic load rating of 6800 N (newtons), so you can rely on it to handle heavier loads. It has a maximum speed of 10,500 rpm (revolutions per minute) on grease and 15,000 rpm on oil, making it well-suited to high-speed applications.


This track roller has a heavy outer ring and inner needle rollers that allow it to provide anti-friction support in linear movements. This means it can run extremely smoothly around the moving parts of machines. A broad operating temperature range of -30°C to +100°C makes this a versatile bearing that's suitable for a range of demanding environments.

Features and Benefits

• Bore size of 8 mm


• Dynamic load rating of 6800 Newtons (N)


• Static load rating of 7700 Newtons (N)


• Eccentric ring slide and track system bearing type


• Roller diameter of 24 mm


• Roller length of 15 mm

Small Pack Size: 471-297
Large Pack Size: 261-2662

RS PRO Datasheet
