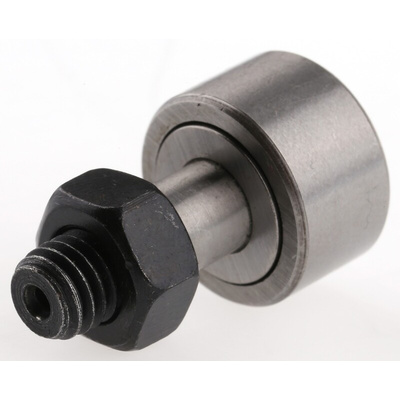

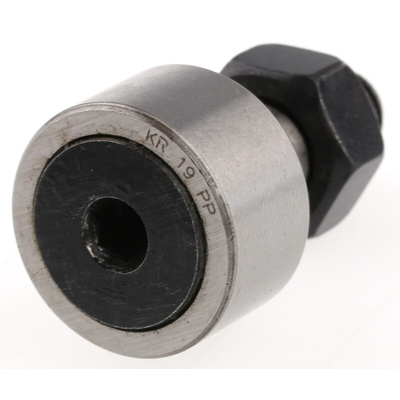

RS PRO Stud Cam Follower 8mm ID, 19mm OD, Опорный ролик

RS PRO Stud Cam Follower ID 8 mm, OD 19 mm

This stud type track follower from RS PRO is used to effectively reduce distortion and friction in industrial equipment. It includes a partially threaded shaft fixed to its inner diameter for assembly onto a machine frame with a nut or similar fastening device. It also has two O-ring seals to keep out dirt and grease.
This component has a broad temperature range of between -30°C and +100°C, so it's ideal for both high-heat and extremely cold environments. It also has a dynamic load rating of 4250 N (newtons), so you know it's capable of withstanding large weights without deformation, making it suitable for heavy-duty industrial functionalities. You'll find track rollers such as this one used as eccentric rollers, guide rollers and rocker valve rollers in a wide range of settings. These include the aerospace industry, industrial robotics and machine tools.

Features and Benefits

• Bore size of 8 mm
• Dynamic load rating of 4250 N (Newtons)
• Eccentric ring slide & track system bearing type
• Roller diameter of 19 mm
• Roller length of 32 mm
• Static load rating of 4600 N
• Stud type

Small Pack Size: 471-314
Large Pack Size: 261-2657

RS Pro Datasheet
