RS PRO Stud Cam Follower 12mm ID, 30mm OD, Опорный ролик

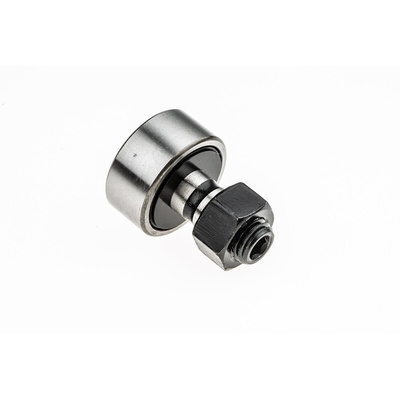

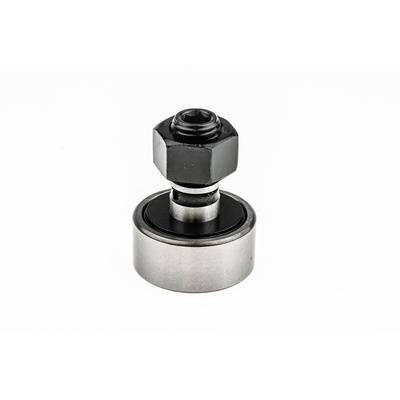

RS PRO Stud Cam Follower 12 mm ID, 30 mm OD

Reduce distortion and friction in industrial applications with this stud cam follower from RS PRO. It features a partially threaded shaft on the inner diameter that can be mounted onto a machine frame using an appropriate fastening device, such as a nut. Two O-ring seals prevent dirt and grease from entering the component, which helps extend its lifetime.


A wide operating temperature range of -30°C to +100°C makes this track roller well-suited for demanding industrial environments. It has a dynamic load rating of 8100 N (newtons), which enables it to handle heavy weights without breaking or distorting.


Components of this type are designed to run directly on surfaces such as ramps, cams and slideways. They're typically used as pressure rollers, guide rollers and eccentric rollers in a wide variety of applications, from industrial robotics to the aerospace industry.

Features and Benefits

• Bore size of 12 mm


• Dynamic load rating of 8100 N (Newtons)


• Static load rating of 9700 N


• Eccentric ring slide and track system bearing type


• Roller diameter of 30 mm


• Roller length of 40 mm


• Stud type

Small Pack Size: 471-348
Large Pack Size: 261-2659

RS Pro Datasheet
