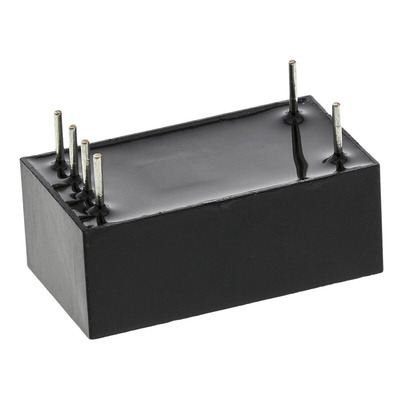

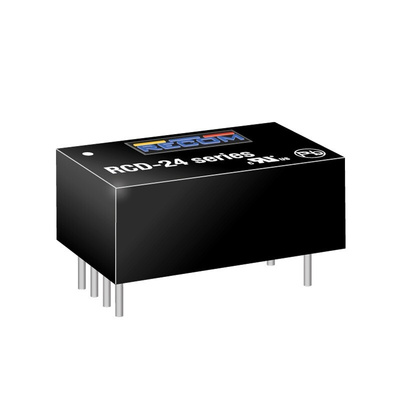

RCD-24-0.70, Recom LED Driver, 2 → 35V dc Output, 24.5W Output, 700mA Output, Constant Current Dimmable, Драйвер

RECOM LED Driver, Constant Current, 6 Pin - RCD-24 Series - RCD-24-0.70

Power your LED lights with this constant current LED driver from RECOM. It accepts a wide input voltage of 4.5 to 36V DC so you can power your lights from sources such as batteries, generators or your mains power supply. The broad output range of 2 to 35V DC suits small to large LED light installations. You can safely dim your lights from 1 to 10V DC, thanks to the pulse-width modulation dimming feature. An operating temperature range between -40°C and +71°C makes this a suitable option for use in demanding conditions.

Features & Benefits

• Mounts on a PCB for easy installation in your LED lighting system
• Short-circuit protection to minimise equipment damage and electrical fires
• 96% efficiency for minimal power wastage
• Delivers up to 700mA of power to suit large LED installations
• 6-pin setup for reliable connection

Applications

• Commercial buildings
• Manufacturing facilities
• Entertainment venues

What's meant by constant current?

Constant current devices like this one use a variable voltage to deliver a fixed electrical current to power single bulbs or an LED chain.

LED Drivers

Datasheet

Datasheet - RCD-24-0.70
