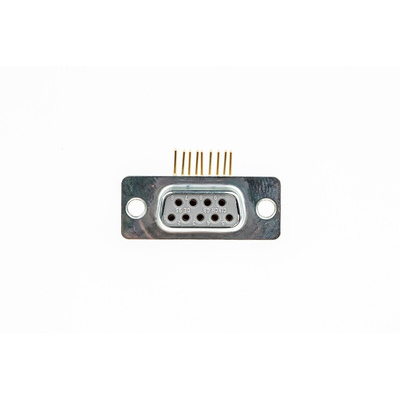

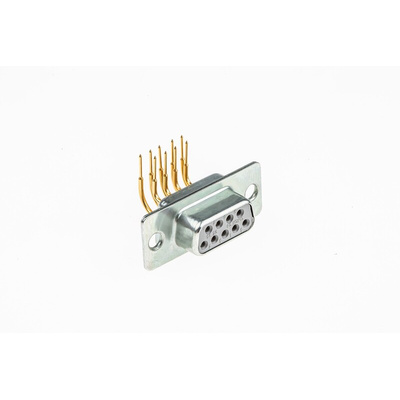

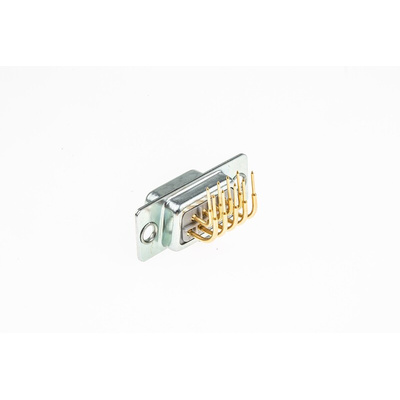

RS PRO 9 Way Right Angle Through Hole D-sub Connector Socket, 2.74mm Pitch, Разъем

RS PRO 9-Way Right Angle Through-Hole D-Sub Connector Socket, 2.74 mm Pitch

Need to install a D-sub connector to your electronic device? Choose this nine-way through-hole socket from RS PRO. It mounts directly to your printed circuit board (PCB) at a right angle, so it's ideal for placing a socket on the side or back of devices like laptops, monitors and televisions.
The copper alloy contact provides high conductivity for an efficient connection with low loss of signal. The gold plating protects the contacts from rust and corrosion, ensuring a long working life.
This socket has a polyethylene terephthalate (PET) body, so it's resistant to moisture and high temperatures, making for a safe work environment. It conforms to Military Detail Specification MIL-DTL-24308, so you can be sure it's suitable for use in military equipment, ground support devices and industrial instrumentation.

Features and Benefits

• Right-angle body orientation
• Copper alloy contact material
• Gold contact plating
• Current rating of 5 A
• Dimensions of 30.81 (length) x 10.92 (width) x 12.55 mm (depth)
• Female gender
• Polyethylene terephthalate (PET) housing material
• Operating temperature range of -55°C to +125°C
• Through-hole mounting type
• Nine contacts
• Pitch of 2.74 mm
• Solder termination method
• Voltage rating of 750 V

RS Pro Datasheet
