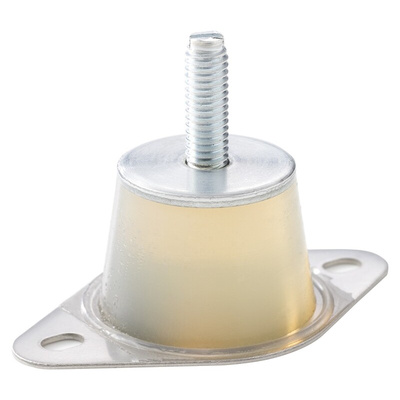

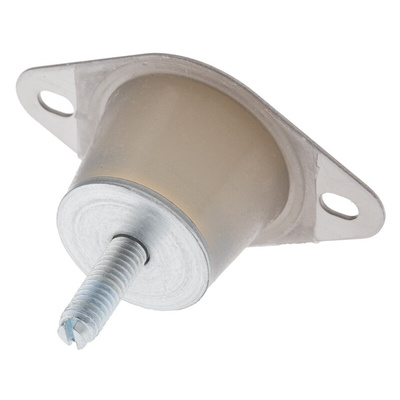

SF-10, Taica Cylindrical M6 Anti Vibration Mount, Male Buffer Foot, Виброопора

Insulator SF-2 to SF-50 Series

SF series to be used in compression only applications. These mounts have a plate at the bottom instead of a bolt.

All SUS versions are stainless steel equivalents.

Features and Benefits

•Compression Dampens to a Lower Frequency than Rubber and Neoprene Mounts
•Also Absorbs Shock and Reduces Noise
•Base Mounting with Top Stud Fixing
•Dampens Vibrations on Four Legged Subject Load from 5 kg up to 50 kg
•Strong Bond Between Metal Parts and Silicon
•Excellent for Outdoor Use\t
•SF-2, SF-5 and SF-10 have stainless steel bottom plate
•SF-2 SUS, SF-5 SUS and SF-10 SUS are full stainless steel versions

Application Information

Ideal for Vacuum Pumps, Precision Equipment, Measuring Applications, On-Board Computers and Other Sensitive Electronic Equipment.

SF-30 and SF-50

Ideal for when there is a need for damping heavy load vibration. An excellent choice for outdoor use due to its durable alphagel® which is wrapped with EPDM rubber.

Note

A bag contains 1 item

Warning

Not Suitable for Applications Involving Uneven Loads, Angular Loading, Twisting, Tensile or Shearing Loads.
