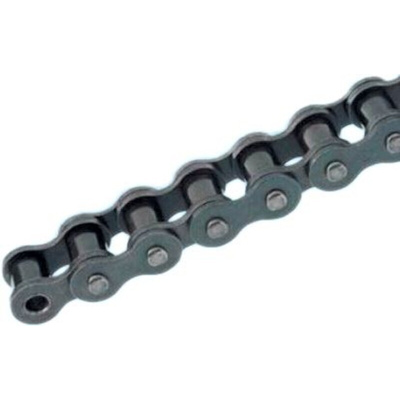

50-1, Wippermann 10A-1, Steel Simplex Roller Chain, 3m Long, Роликовая цепь

0474931
Номер производителя: 50-1Производитель: Wippermann
Цена за шт.
23376.00 руб. (С НДС) *
Количество 5+
Цена 22440.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Simplex Roller Chains according to DIN 8188-1 (American Type)

Corresponding to ISO 606
Holes punched & shaved by progressive die tools
Fatigue resistant shot peened rollers & plates
All chains are pre-loaded & lubricated ready for use
Supplied in 10 ft length plus a connector\t\t\t\t

Wippermann Roller Chains

Roller chains DIN 8187, 8188

Roller chains have a wide application range and are therefore frequently used in engine, machine and plant construction, not merely as drive and gear chains, but also as lantern gears, hoisting and conveyor chains as well as in special applications with different attachments for transport and conveyance purposes. With suitable attachment parts, roller chains offer special functionalities and thus a large application variety.

The advantages of roller chains:

Wide application range as drive, conveyor and hoisting chains
A variety of different functions by using attachments on special chains
Robustness to temperature influences and soiling
Positive locking transmission without slip \t\t\t\t\t\t
Cost effectiveness \t\t\t\t\t\t
Excellent application range through different chain sizes and use as simplex and multiplex roller chains \t
Multiple transmission ratios \t\t\t\t\t\t
Long shaft distances possible, e.g. for conveying systems
Life cycle limits indicated by chain elongation
Problem-free shortening and lengthening of chains
Drive on either side possible \t\t\t\t\t\t
No pre-tensioning required, therefore no static bearing loads
Resistance to fire

Техническая спецификация
pdfWIPPERMANN ROLLER CHAIN Data Sheet
Вес:
1кг/м
Высота пластины:
15мм
Габаритная ширина:
21.8мм
Диаметр ролика:
10.16мм
Длина:
Количество нитей:
Simplex
Материал:
Сталь
Стандарт:
American
Тип цепи:
10A-1
Шаг:
15.88мм
Ширина цепи:
9.4мм
