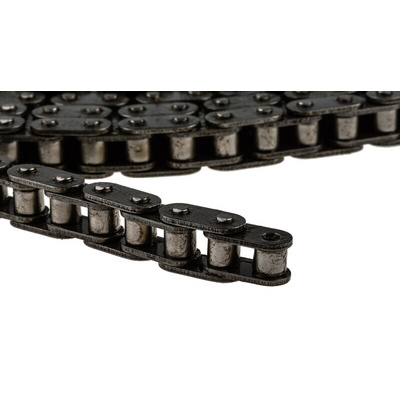

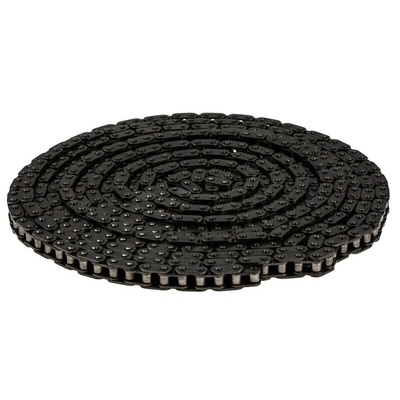

332, Wippermann 083L, Steel Simplex Roller Chain, 5m Long, Роликовая цепь

0474975
Номер производителя: 332Производитель: Wippermann
Цена за шт.
24192.00 руб. (С НДС) *
Количество 5+
Цена 23223.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Simplex Roller Chains according to DIN 8187-1 (European Type)

Corresponding to ISO 606
Popular chains are COPPERHEAD-EASYSPLIT. Side plates can be removed easily without having to punch out the pins or grind off the rivit heads, saving time and effort
Fully heat treated solid rollers, bushes and pins
Holes punched and shaved by progressive die tools
Fatigue resistant shot peened rollers and plates
All chains are pre-loaded & lubricated ready for use
Supplied in 5 metre length, plus a connector

Wippermann Roller Chains

Roller chains DIN 8187, 8188

Roller chains have a wide application range and are therefore frequently used in engine, machine and plant construction, not merely as drive and gear chains, but also as lantern gears, hoisting and conveyor chains as well as in special applications with different attachments for transport and conveyance purposes. With suitable attachment parts, roller chains offer special functionalities and thus a large application variety.

The advantages of roller chains:

Wide application range as drive, conveyor and hoisting chains
A variety of different functions by using attachments on special chains
Robustness to temperature influences and soiling
Positive locking transmission without slip \t\t\t\t\t\t
Cost effectiveness \t\t\t\t\t\t
Excellent application range through different chain sizes and use as simplex and multiplex roller chains \t
Multiple transmission ratios \t\t\t\t\t\t
Long shaft distances possible, e.g. for conveying systems
Life cycle limits indicated by chain elongation
Problem-free shortening and lengthening of chains
Drive on either side possible \t\t\t\t\t\t
No pre-tensioning required, therefore no static bearing loads
Resistance to fire

Техническая спецификация
pdfWIPPERMANN ROLLER CHAIN Data Sheet
Вес:
0.3kg/m
Высота пластины:
9.9мм
Габаритная ширина:
11.2мм
Диаметр ролика:
7.75мм
Длина:
Количество нитей:
Simplex
Материал:
Сталь
Стандарт:
British/European
Тип цепи:
083L
Шаг:
12.7мм
Ширина цепи:
4.88мм
