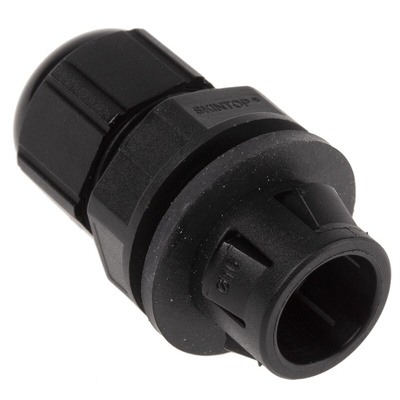

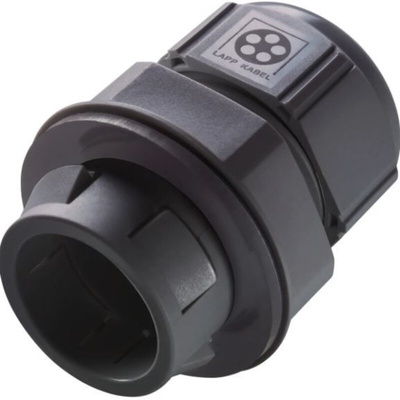

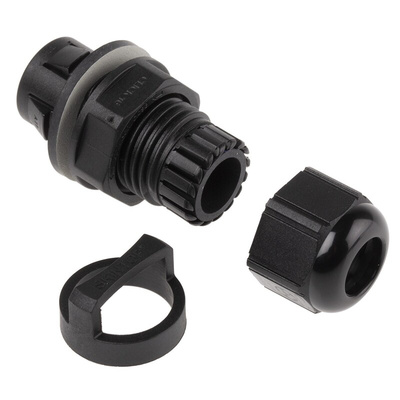

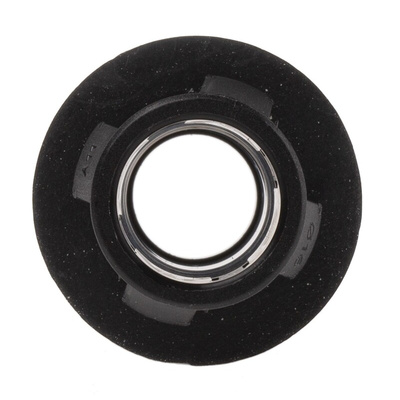

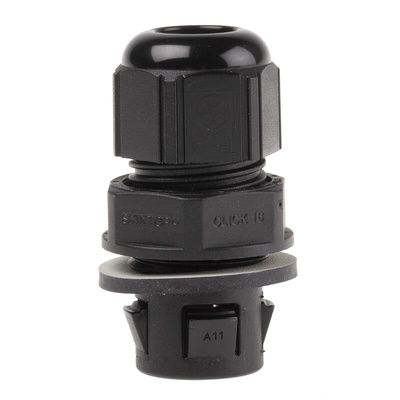

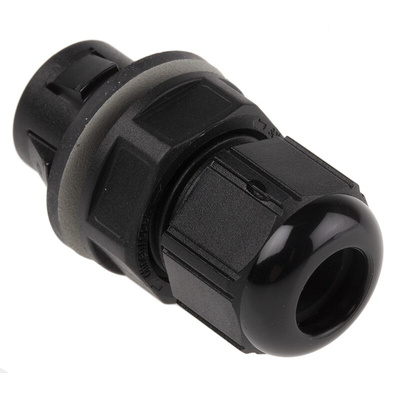

53112882, Lapp SKINTOP Series Black Polyamide Cable Gland, M16 Thread, 5mm Min, 9mm Max, IP68, Кабельный ввод

LAPP IP68 Metric Skintop® Click GlandS

With a tough polyamide construction, the Skintop Click series has excellent environmental protection. They are sealed to IP68, which means it is well protected against dust ingress and moisture, even to the point of shallow immersion. This makes them ideal for harsh environments, or even for outdoor use.

The cable gland is also resistant to UV rays and offers protection from vibration.

Features and Benefits

• IP68 environmental resistance
• Click fit easy mounting
• Dynamic operating temperature range of -20°C to +100
• Resistant to UV rays(Black color)
• Vibration protection

Applications

Skintop Click cable glands can be used whenever fast and convenient cable connection is needed with appropriately sized data cables. Due to their excellent long term vibration resistance, Skintop Click cable glands are often used in industrial environments where heavy machinery is used. They can also be used in:

• Plant Engineering
• Measurement and Control Technology
• Control Cabinets

Environment

With a tough polyamide construction, the Skintop Click series has excellent environmental protection. They are sealed to IP68, which means it is well protected against dust ingress, and moisture, even to the point of shallow immersion. This makes them ideal for harsh environments, or even outdoor use.

The cable gland is also resistant to UV rays and offers protection from vibration.

Accessories

Accessories are available for the Skintop Click Range of Cable Glands:
• Removal Tool, size M20 0475069
• Blanking Plug, size M16 0475053
• Blanking Plug, size M20 0475081
• Blanking Plug, size M25 0475085

Standards

Test in acc. EN50262

Supplied with

Removal Tool

LAPP Cable Gland, 5 to 9mm Cable Diameter Range, M16 Thread - SKINTOP Series - 53112882

Looking for a way to protect your electrical wires? Choose this cable gland from LAPP to safeguard connections and support the performance of attached equipment. The unit simply snaps into place, making assembly quick and easy. An integral locking feature is on hand to resist vibrations and prevent accidental disconnection. An NBR O-ring and elastomer seal gives the unit an IP68 rating. This means it keeps out dust and moisture and delivers reliable performance.

• Tough polyamide construction to effectively protect cables and connections
• Accommodates 5 to 9mm cable diameters for versatility
• Broad operating temperature scope between -20°C and +100°C for use in tough conditions

Applications

• Plant engineering
• Electrical enclosures
• Measurement and control applications
• Medical equipment

Can I use this cable gland for outdoor applications?

Yes, it's UV resistant for shielding against environmental damage

Datasheet

Cable Gland Selection Chart
