MIR-12M16N, Nylofix M16x1.5 Straight Cable Conduit Fitting, Black 12mm nominal size

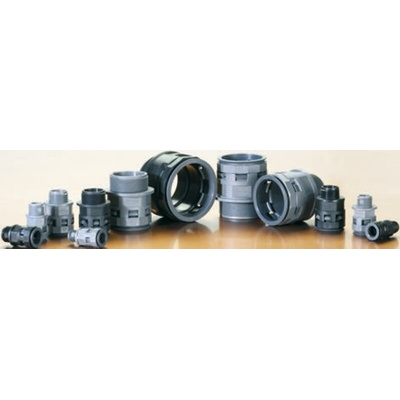

MIR Straight Connectors

Black modified polyamide 6 (PA6) straight connectors with metric male threads to EN60423. For use with the range of Nylofix flexible corrigated conduits. Applications include cable entries into control panels, terminal boxes and connections to electric motors in accordance with EN60204 (Safety of Machinery) specifications.

LUL Approved
Self extinguishing
'EASY-CLICK' no tools required for rapid assembly and removal
Shock Resistant
IP66 protection or IP68 when used with the patented ORJ sealing 'O' ring
Halogen, cadmium and phosphorus free
Temperature range -40°C to +105°C and upto +150°C for short periods

Standards

I2F2 according to NF F16-101

Approvals

LUL (London Underground Limited) approved

Nylofix IRT Flexible Conduit (LUL Approved)

A range of medium wall thickness modified polyamide 6 (PA6) flexible corrugated conduit and accessories (including NBR Elastomer O-rings) for the insulation and mechanical protection of cables and installations. Particularly suitable for use within passenger areas of railway rollingstock, tunnels and underground stations that have special and often mandatory smoke and fire requirements.

IRT / LTC / MIR / NEC / ORJ / SDN Series_Data Sheet
