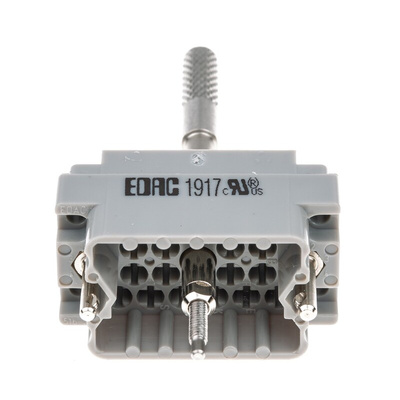

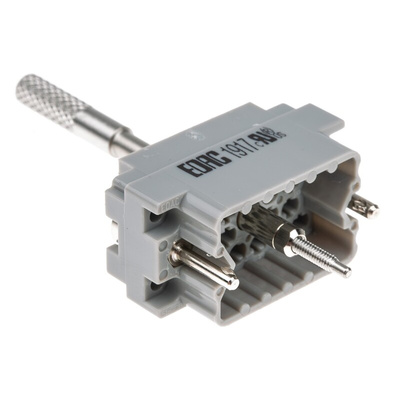

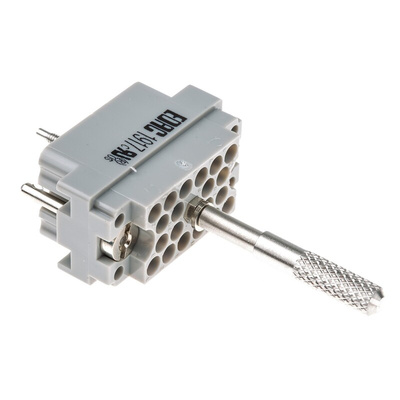

516-020-000-301, EDAC 516 20 Way D-sub Connector Plug, Разъем

EDAC Heavy Duty Power Connector Plug

The EDAC 516 series rectangular 20-way connector plug has crimp pin termination type. This male plug is suitable for applications where safety and high reliability are required. It has a hermaphroditic metal-to-metal contact design. The plugs or receptacles of this high-density system can form either the fixed or free half of the connector, providing designers with great flexibility. It has 20 contacts, which are made of phosphor bronze gold over nickel plating. These include audio broadcast, railway signalling, oil and gas industry control systems together with general industrial and automotive control and test systems. The housing is made of polycarbonate material. Crimp, solder and wire wrap contacts are available for this connector housing and are sold separately.

Features and Benefits

Contacts fit plug and socket
Current rating is 8.5A
Insulating resistance is 5000mOhm
Operating temperature ranges between -65°C and 125°C
Secure connection guaranteed

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
UL rated

516 Series Rack & Panel Connectors Product Data

516-020-000-301 Datasheet
