516-290-590, EDAC 516 D-sub Connector Socket, Разъем

EDAC 516 Terminals

From EDAC, these terminals are for use with EDAC 516 Series connector housings.

Available in this Range

• Stock No.476-485 is a Solder Tag Terminal, 8.5A

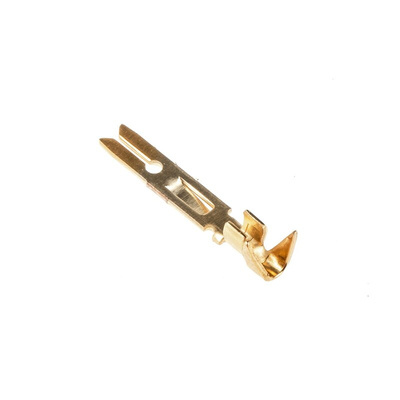

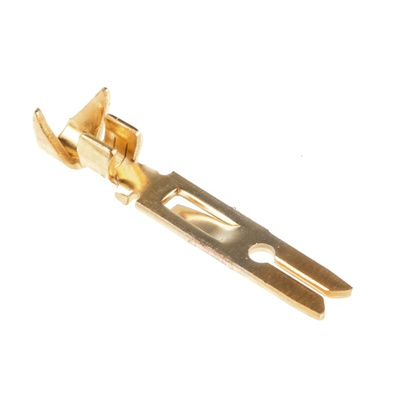

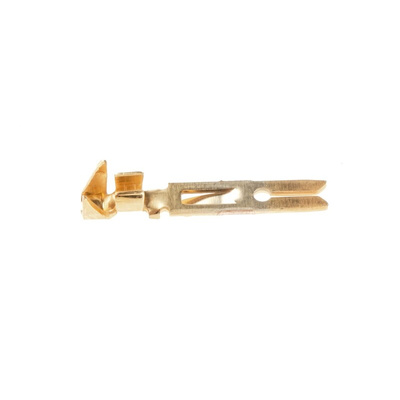

• Stock No.476-491 is a Loose Crimp Terminal, 8.5A
• Stock No.476-508 is a Wire Wrap Terminal, 8.5A
• Stock No.910-6778 is a Crimp Contact 8.5A

EDAC terminal contact

The EDAC 516 series terminal contact is a female crimp type contact. The connector body orientation of contact is straight and has a current rating of 8.5A. Contact material is phosphor bronze and contact plating is of gold over nickel. The operating temperature ranges between -65°C and 105°C.

EDAC 516 Range
This extensive range of 8.5A multipole connectors is suitable for use in a wide range of applications where safety and/or ultra-reliability is required. These include audio broadcast, railway signalling, oil and gas industry control systems together with general industrial and automotive control & test systems. These connectors are suitable wherever a multi-pin cable to panel or cable to cable connection is required. The plugs or receptacles of this high-density system can form either the fixed or free half of the connector, providing designers with great flexibility.

Guaranteed secure connection
Hermaphroditic metal to metal contact design
Polarised moulding and metal locators
Crimp, solder or wire wrap contacts
Contacts fit plug and socket

Certifications

• ANSI/ESD S20.20:2014
• BS EN 61340-5-1:2007

EDAC 516 Range

This extensive range of 8.5A multipole connectors is suitable for use in a wide range of applications where safety and/or ultra-reliability is required. These include audio broadcast, railway signalling, oil and gas industry control systems together with general industrial and automotive control & test systems. These connectors are suitable wherever a multi-pin cable to panel or cable to cable connection is required. The plugs or receptacles of this high density system can form either the fixed or free half of the connector, providing designers with great flexibility.

Guaranteed secure connection
Hermaphroditic metal to metal contact design
Polarized mouldings and metal locators
Crimp, solder or wire wrap contacts
Contacts fit plug and socket

Datasheet
