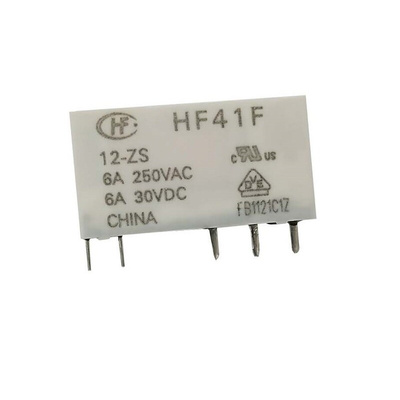

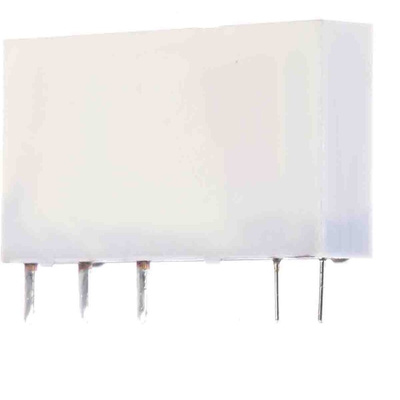

RS PRO PCB Mount Power Relay, 12V dc Coil, 6A Switching Current, SPDT, Реле

Slim Relays

Slim size (width 5mm)
High sensitivity, coil power 170mW
4kV dielectric strength (between coil and contacts)
Surge voltage up to 6kV (between coil and contacts)
Wash tight
Clearance/creepage distance 8mm

Approvals

UL (File no. E133481), VDE (File no. 40020043)

RS PRO 10 A DPDT Non-Latching Relay

Innovation brings new solutions and makes life more comfortable for us all. An electrical switching device is one of them to appreciate from Automotive engines, industrial machinery to more tangible in household applications, regardless whether it is latching or non-latching Relay. They both represent a different approach to application functionality, bringing your electronics world to life.

Today, we are proudly introducing our own branded RS PRO SPDT Relay giving you environmentally friendly product without compromising strength of 2.5 dielectric (between coil and contracts).

Relay rating is showing in ac and dc, and it is crucial never to exceed the maximum switching voltage. Our SPDT (single pole, double throw) Relay provides 400 V ac and 125 V dc telling you about the specific amount of power that can be switched through the Relays.

Our range of Non-Latching Relays are reliable, well-respected electronics, offering you competitive price range without compromising quality and you can be sure to find them in stock. If you are looking for more specific information, you can check our datasheet that should answer your burning questions.

Features and Benefits

• Very slim size (width 5 mm) comes with low price


• Environmentally friendly (RoHS Compliant) and meets UL E133481 and VDE 40020043 regulations


• High flammability class – UL94, V-O CTI 250, VDE 0631/0700


• Vibration resistance: 10Hz to 55Hz 1mm DA


• Ambient temperature: -40°C up to +85°C


• Wash tight and flux proof

Applications

Terminal compact size and reliable mechanism of the Relay Circuit has its place in the following applications:

• Automotive engines


• Household applications


• Industrial machinery


• Medical equipment


• Telecommunications equipment

Frequently asked questions

What is the difference between latching and non-latching relays?

Both types of relays in similar in design and function; however, a significant difference between them is that a latching relay will remain in the last position when it was last powered. In contrast, a non-latching goes back to its normal position. This makes each more type of Relay suitable for different applications.

Does it make much difference which way a Relay is installed?

If the coil polarity is backwards, the coil is ultimately shorted by the diode every single time you try to turn it on. Therefore, Relays must always have the correct position (correct polarity); otherwise, it is a matter of time before smoke will appear, meaning Relays are polarity sensitive.

Why RS PRO?

RS PRO is our family brand to go-to and brings you a wide range for high-quality and high-value products to support your project. Trusted by engineers all over the world, every part of every RS PRO product is always rigorously tested against demanding industry standards. We are only giving the RS PRO seal of approval if we are confident of their exceptional quality, which means you can be convinced too.

RS PRO Datasheet
