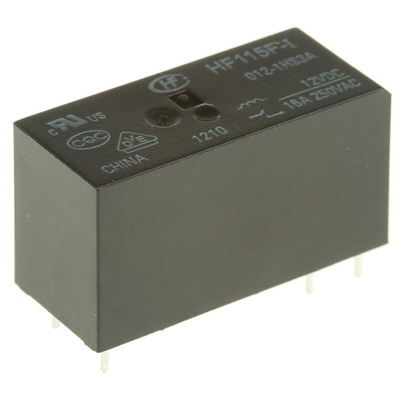

RS PRO PCB Mount Power Relay, 12V dc Coil, 16A Switching Current, SPST, Реле

RS PRO High Inrush SPST Non-Latching Signal Relay (12V dc)

A reliable miniature non latching relay with a Single Pole Single Throw (SPST) configuration designed to return to its original position after use. Designed for high inrush capability to prevent damage caused by excessive current when in operation.
This 16A signal relay is designed for easy PCB mounting and ideal for boards where space is at a premium due to its miniature and low profile design with dimensions of only 29 x 12.7 x 15.7mm.
Plastic sealed and flux proofed for excellent moisture resistance the non latching miniature relay is suitable for use in a wide range of devices and ideal for use in push button applications.

Features and Benefits

• Non-latching signal relay


• High inrush capability of TV-5 80A @ 125V ac


• Creepage of only 10mm


• Miniature size of 29 x 12.7 x 15.7mm


• PCB mount


• Maximum switching voltage of 12Vdc


• Maximum switching current of 16A


• Contact rating of 250V ac


• Dielectric strength of 5kV


• Vibration resistance of 10Hz to 150Hz

Standards and Approvals: IEC 60335-1, UL, CUL, CQC, VDE, RoHS compliant
