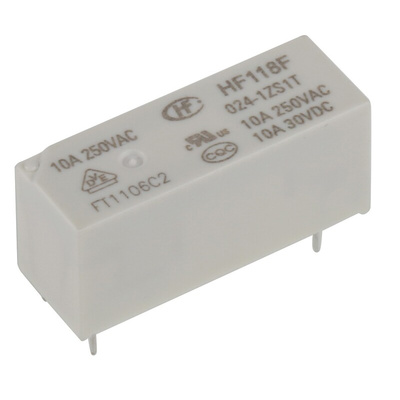

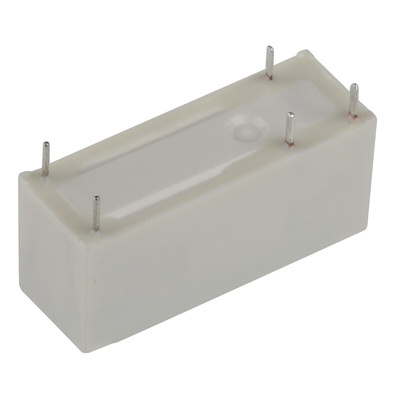

RS PRO PCB Mount Power Relay, 24V dc Coil, 10A Switching Current, SPDT, Реле

RS PRO Coil Non-Latching Relay, SPDT, 10 A Switching Current, 24 V DC, PCB Mounting, Single Pole

This relay from RS PRO is designed to open and close an electrical circuit. It's a non-latching type, meaning it stays in a normally-closed position until power passes through it, making it a good choice for keyboards and small input buttons. This component is designed to be mounted on a PCB (printed circuit board).
The unit has a low profile and takes up very little space on a PCB (printed circuit board) for maximum packing efficiency. Its washproof construction means you can clean it with a damp cloth. The unit is protected against voltage surges up to 10 kV (kilovolts) to protect equipment from electrical damage and weighs just 8 g for enhanced system efficiency. Well-suited to automotive equipment and industrial machinery, it's UL (Underwriters' Laboratories) approved as safe to use in electrical systems.

Features and Benefits

• Coil power of 290 mW
• Coil resistance of 2.35 kΩ
• Coil voltage of 24 V DC
• SPDT (single-pole, double-throw) contact configuration
• Silver alloy contacts
• Dimensions of 12.5 (H) x 28.5 (L) x 10.1 mm (D)
• Isolation coil-to-contact of 5 kV AC
• Life of 100,000 (electrical) cycles, 10,000,000 (mechanical) cycles
• Maximum switching power (AC) of 2.5 kVA, (DC) of 300 W
• Maximum switching voltage (AC) of 440 V AC, (DC) of 125 V DC
• Operating temperature range of -40°C to +85°C
• Single pole
• Switching current of 10 A (amps)
• Through-hole terminal type
