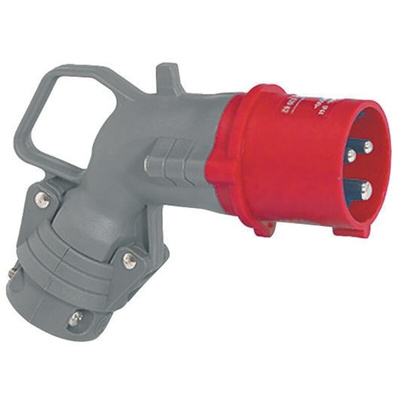

0 522 64, Legrand, HYPRA IP44 Red Cable Mount 3P+N+E Right Angle Industrial Power Plug, Rated At 16.0A, 415.0 V, Разъем питания

0479194
Номер производителя: 0 522 64Производитель: Legrand
Цена за шт.
12756.00 руб. (С НДС) *
Количество 5+
Цена 12117.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Plastic male angled plugs

Standards

NF EN 60309-1 and 2, IEC 309-1 and 2

Legrand Range

Flexibility is the key to success of the new Hypra range of industrial plugs and sockets. The wide choice of product formats means that the Hypra range satisfies the demands of most applications.,All plugs and connectors feature an external cable clamp with internal glanding; this affords maximum safety in the wiring, rendering accidental unclamping of the cable impossible, thereby eliminating pulling and stress on the connections. An additional benefit of the internal glanding is that it provides optimum protection against the ingress of water.,Other products in the range boast features including stainless steel external screws, captive terminal screws and nickel plated brass pins and socket tubes. The plastic shielding of active parts is self-extinguishing.,Temperature rating -25 to +40°C.,All products are coded by earth contact position and colour coded for voltage and suitable for 50/60Hz operation.

Техническая спецификация
pdfSockets,Plugs,Appliance Inlets, Catalogue
pdfDatasheet
Номинал тока:
16.0A
Номинальное напряжение:
415.0 V
Ориентация корпуса:
Правый угол
Рабочая температура - максимальная:
+100°C
Рабочая температура - минимальная:
-50
Разъем/гнездо:
Plug
Род:
Male
Серия:
Hypra
Степень защиты IP:
IP44
Тип монтажа:
Кабельное крепление
Формат полюса:
3P+N+E
Цвет:
Красный
