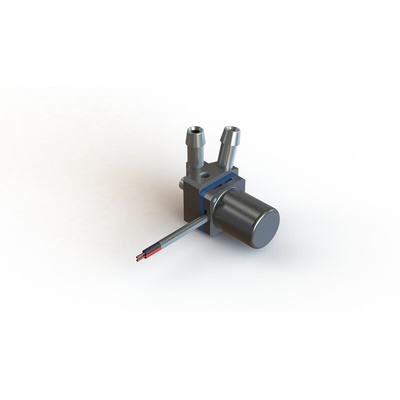

RS PRO 1.5 → 3 V 210 mbar Direct Coupling Centrifugal Water Pump, 350 → 450ml/min

RS PRO Centrifugal Water Pump, 1.5 to 3 V, 350 ml/min

This RS PRO centrifugal water pump is perfect for medical devices and cooling and lubrication systems. Its high-quality construction and miniature size make it suitable for use in fuel cells, battery- or solar-powered systems and low-pressure fuel pumps.
This pump has an Ingress Protection (IP) rating of IP64, indicating it's protected from dust and low-pressure water sprays. The pulseless flow pumps water smoothly and keeps mechanical noise to a minimum.
The robust design of this consists of anodised 6000 series aluminium and 316-grade stainless steel, so it combines high tensile strength with excellent corrosion resistance.

Features and Benefits

• Aluminium body material
• 3.2 mm tube input connection
• Input power of 1.3 W
• Tube input thread connection type
• Ingress Protection (IP) rating of IP45
• Maximum flow rate of 350 ml/min
• Maximum fluid temperature of +60°C
• Maximum head of 1.9 m
• Maximum working pressure of 327 mbar
• Output connection size of 3.2 mm
• Supply voltage of 1.5 to 3 V
