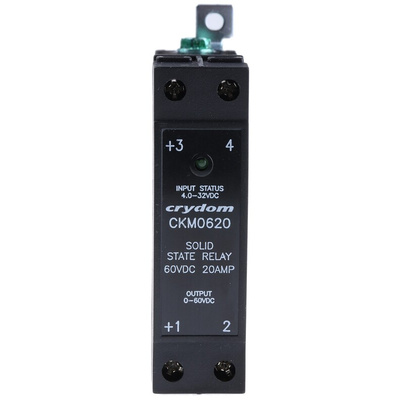

CKM0620, Sensata / Crydom CKM Series Solid State Relay, 20 A Load, DIN Rail Mount, 60 V Load, 32 V Control, Реле

DIN Rail SSR, CKM Series

MOSFET output
Low leakage

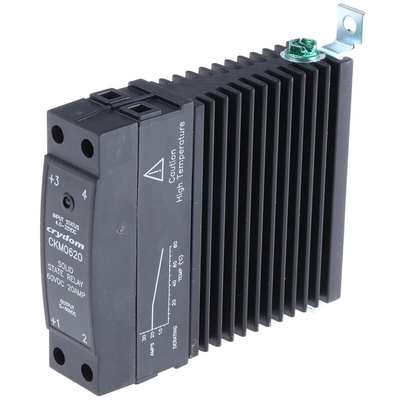

Integral heatsink
Box clamp terminals
Ground terminal included

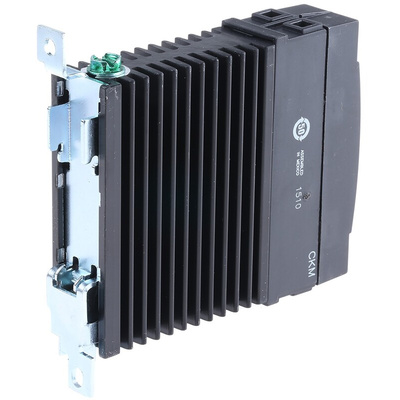

DIN rail & panel mount
Status indicating LED
DC Control

Sensata | Crydom Solid-State Relay, DIN Rail Mounting, 22.5mm Width - CKM Series - CKM0620

Need a way to switch DC power from a control circuit to a load circuit? Try this solid-state relay from Sensata | Crydom. Thanks to its flexible control voltage between 4 and 32V DC, this unit's MOSFET transistor lets you adjust the specific output voltage and current needed to power your machinery. The device also offers low leakage, making it a safe and reliable switching solution for commercial or industrial applications. For versatility, you can mount it on a panel or a DIN rail. You'll find a device like this one used in heating systems, pumps and compressors.

Features & Benefits

• LED indicators for ease of status monitoring
• Wide operating temperature range between -40°C and +80°C for use in demanding conditions
• Light weight of 280g to place minimal strain on your equipment
• Maximum turn-on and turn-off times of 1ms for fast switching

What's the purpose of this unit's epoxy encapsulation?

This SSR has a thermally conductive epoxy encapsulation that allows heat to dissipate efficiently while ensuring effective insulation for safety in your work environment.

DC Switching

Series CKM 10-30Amp • 60Vdc • DC Output Data Sheet

Declaration of Conformity 2014/35/EU

Line Drawing - CKM Series
