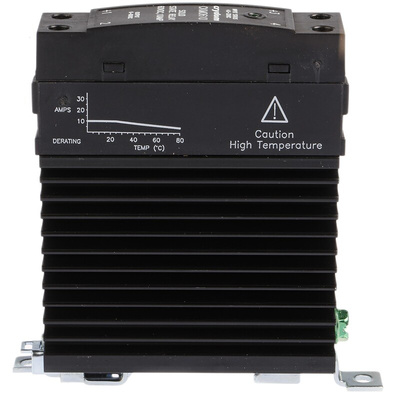

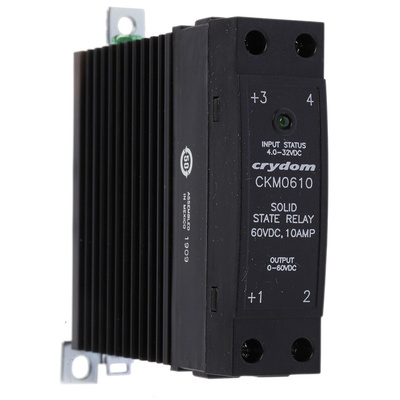

CKM0610, Sensata / Crydom CKM SERIES Series Solid State Relay, 10 A Load, DIN Rail Mount, 60 V Load, 32 V Control, Реле

Sensata | Crydom Solid-State Relay, MOSFET Technology, 81.9mm Height - CKM Series - CKM0610

Want sure-fire switching from a DC-powered control circuit to a load circuit? Make the switch to this solid-state relay from Sensata | Crydom. Thanks to its adjustable MOSFET transistor, you'll get the flexibility to tweak output voltage and current values to ensure an optimal electrical supply for your machinery. MOSFET technology also ensures low leakage to ensure safety from electrical hazards. As this component comes in a slimline package with dimensions of 81.3 (L) x 22.5 (W) x 81.9mm (H), it adds minimal bulk to your setup. Use this component for applications involving heavy loads, such as pumps and motors.

Features & Benefits

• Wide operating temperature range of -40°C to +80°C for use in harsh environments
• Thermally conductive epoxy encapsulation for improved heat dissipation
• LED indicator means you can keep a close eye on its input status

How can I mount this SSR?

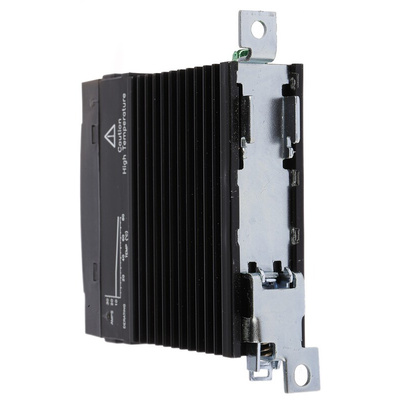

You can mount this component straight onto your panel or snap it into place on a standard 35mm DIN rail, so it's a doddle to install.

DC Switching

Datasheet

Declaration of Conformity 2014/35/EU

Line Drawing - CKM0610
