RS PRO 15 Way Cable Mount D-sub Connector Plug, Корпус

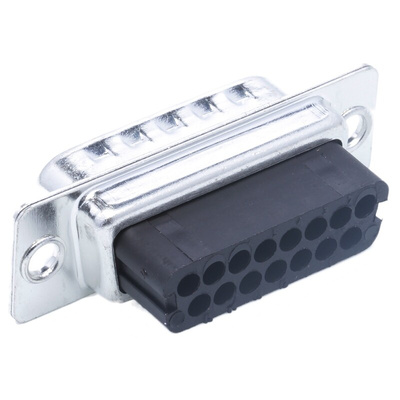

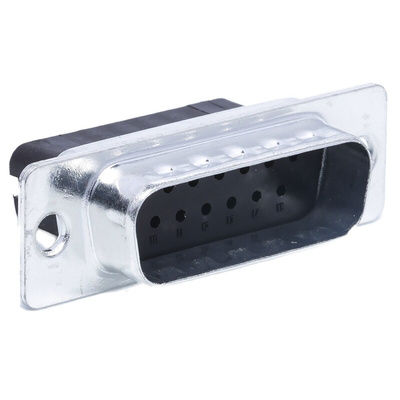

RS PRO 15-Way Cable Mount D-Sub Connector Plug

Need to mount wires to a printed circuit board (PCB) through a D-sub socket? Choose this 15-way shielded crimp plug from RS PRO. To connect the wires, simply crimp them to the 15 contacts.


For strength and durability, the plug's housing is made of steel. The nylon insulation is reinforced with glass fibre for additional compressive and tensile strength, giving you a long-lasting component that's robust and resistant to wear.


This plug has been tested by engineers to ensure quality and reliability. As it meets Restriction of Hazardous Substances (RoHS) standards, it contains only minimal amounts of any harmful materials.

Features and Benefits

• Straight body orientation


• Brass contact material


• Gold contact plating


• Current rating of 5 A


• Dimensions of 39.14 (length) x 12.55 mm (width)


• Male gender


• Steel housing material


• Maximum operating temperature of +125°C


• Minimum operating temperature of -65°C


• Cable mounting type


• 15 contacts


• Crimp termination method
