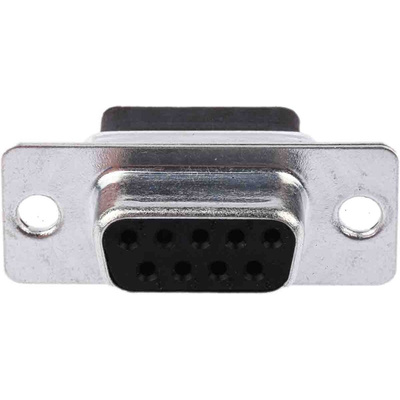

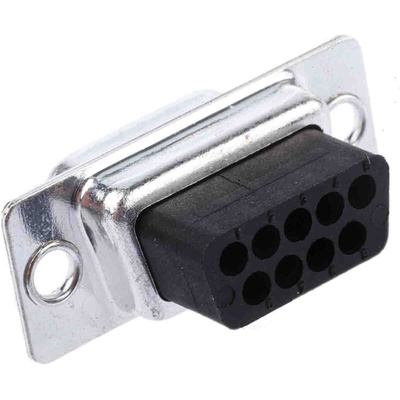

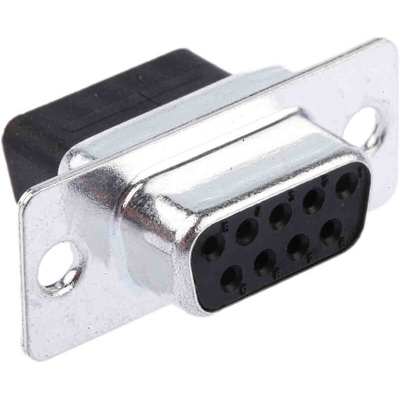

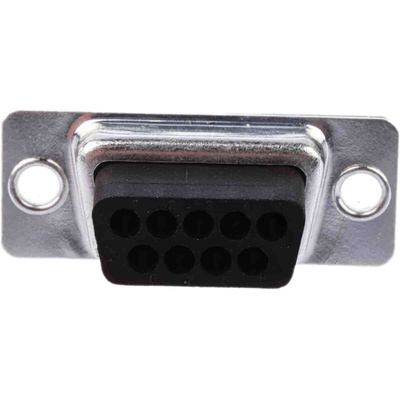

RS PRO 9-Way Cable Mount D-Sub Connector Socket

When you need to mount wires to a printed circuit board (PCB) through a D-sub socket, choose this nine-way shielded crimp plug shell from RS PRO. For ease of installation, you can crimp the wires into the socket's nine contact holes.


Thanks to the socket's steel housing, the shell is highly durable and resistant to corrosion. Its glass fibre-reinforced nylon insulation offers excellent tensile and compressive strength for long-lasting performance, even in heavy-duty applications.


This product conforms to Restriction of Hazardous Substances (RoHS) standards, meaning it contains only trace levels of any harmful materials. It has been engineer-tested to ensure quality and consistency.

Features and Benefits

• Straight body orientation


• Phosphor bronze contact material


• Gold contact plating


• Current rating of 5 A


• Dimensions of 30.81 (length) x 12.55 mm (width)


• Female gender


• Steel housing material


• Maximum operating temperature of +125°C


• Minimum operating temperature of -65°C


• Cable mounting type


• Nine contacts


• Crimp termination method
