RS PRO 15 Way Right Angle Through Hole D-sub Connector Socket, 2.29mm Pitch, Разъем

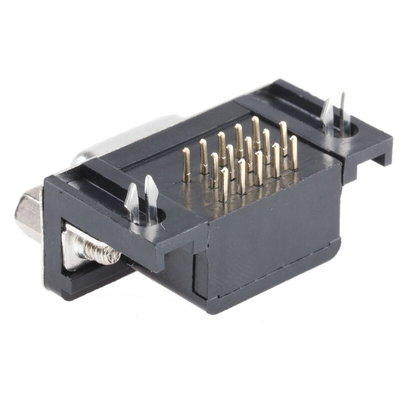

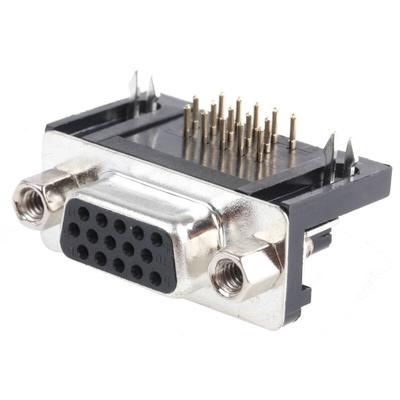

RS PRO 15-Way Right-Angle Through-Hole D-Sub Connector Socket, 2.29 mm Pitch

If you need to mount a D-sub connection at a right angle to your printed circuit board (PCB), choose this RS PRO 15-way through-hole socket. It has copper alloy contacts for rapid, efficient transmission of current and signal and solder termination to ensure a secure and reliable connection.
This socket has gold-plated contacts that provide extra resistance against rust and corrosion. This makes for a longer product life. The nylon housing material means the component is robust and durable and will stand up to wear.
The unit has an operating temperature range of -55°C to +125°C, so it's able to withstand harsh environments such as telecommunication warehouses, factory automation plants and building sites. The right-angle body orientation makes it ideal for installing on the back or side of your electronic device.

Features and Benefits

• Right-angle body orientation
• Copper alloy contact material
• Gold contact plating
• Current rating of 3 A
• High-density D-sub connector type
• Depth of 12.55 mm
• Female gender
• Nylon housing material
• Operating temperature range of -55°C to +125°C
• Through-hole mounting type
• 15 contacts
• Pitch of 2.29 mm
• Solder termination method
• Voltage rating of 350 V

Approvals

UL Recognized
