Bulgin Fused Plug

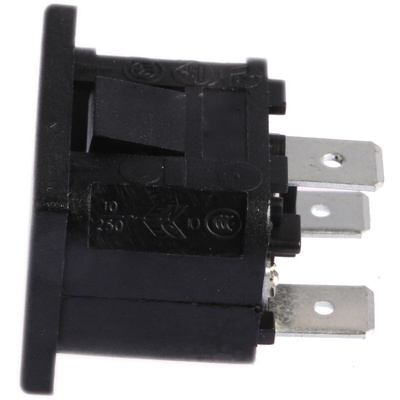

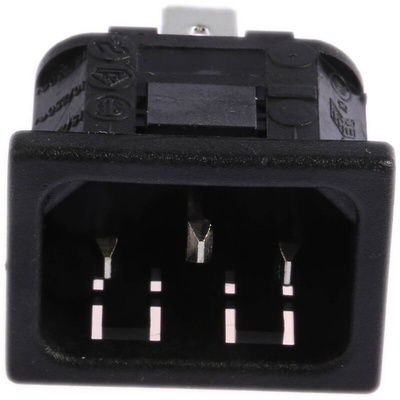

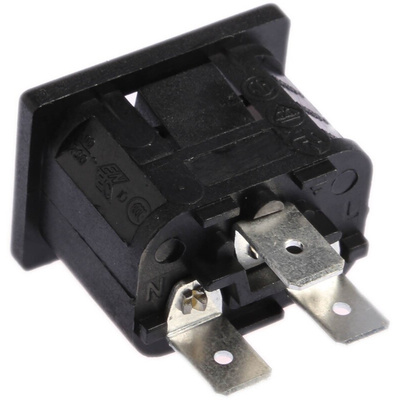

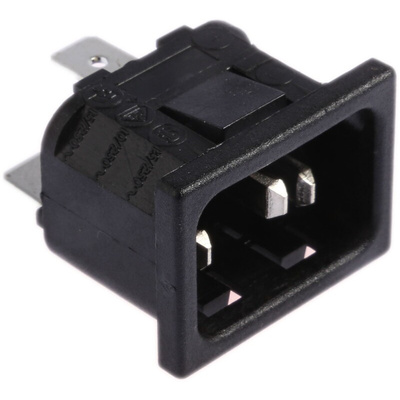

The Bulgin fused plug is a snap-fit to a panel, straight, IEC 320 C14 male inlet connector. It has a supply voltage rating of 250VAC and a current rating of 10A. This M connector has 3 contacts which are made from brass and plated with nickel.
Note:
All of these plugs and sockets have a contact resistance of <10mΩ and insulation resistance of >103MΩ.
Features and Benefits
Panel thickness is 1.5mm
Solder terminals
Twin fused 5mm x 20mm
Fused inlet with 6.3mm (0.25in) blade receptacles
Contact resistance is <10mΩ
Insulation resistance is >10⁴MΩ
Operating temperature ranges between -40°C and 70°C
Applications
Domestic appliances
Electrical appliances
Instrumentation amplifiers
Computer hard drives
Certifications
UL approved
CSA certified
VDE
IMQ
BSI
