PF0011/15/63, Bulgin C14 Snap-In IEC Connector Male, 10A, 250 V, Fuse Size 5 x 20mm, Разъем

0481639
Номер производителя: PF0011/15/63Производитель: Bulgin
Цена за шт.
1891.50 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

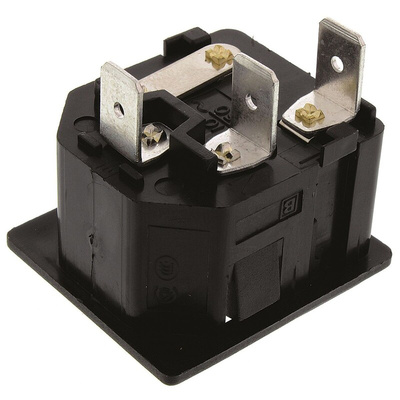

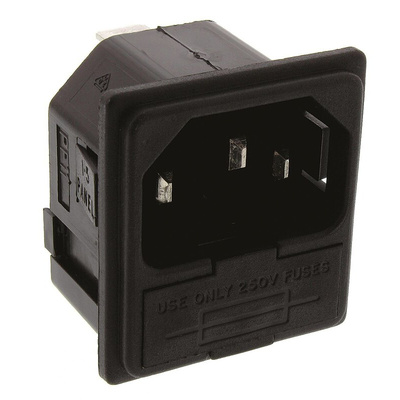

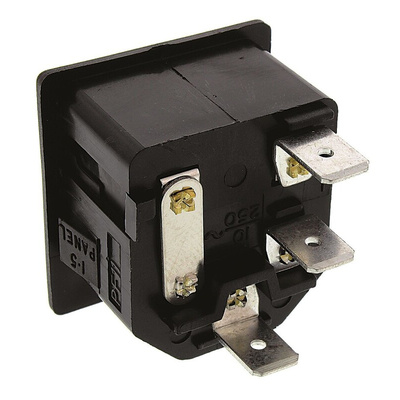

Bulgin chassis plug with fuseholder drawer, snap-in

Fuseholder drawer for 5 ´ 20 mm fuses and space for spare

NB: In the types below the fuse is permanently fixed to the phase pin.
Assembly: Snap-in (plug pressed in place in the hole and locked in place by plastic springs)

Y shape.

Bulgin IEC Fused Plug

The Bulgin IEC fused plug is a snap-fit to a panel, straight, IEC 320 C14 male inlet connector. It has a supply voltage rating of 250VAC and a current rating of 10A. This M connector has 3 contacts which are made from brass and plated with tin.

Note:
These fused plugs accept 5mm x 20mm fuses.

Warning:
Neutral line must not be fused where it is referenced to the earth.

Features and Benefits

Panel thickness is 1.5mm
Tab terminals
Fused inlet with 6.3mm tags
Mating socket is accepted when fuse drawer is closed
Contact resistance is <10mΩ
Operating temperature ranges between -40°C and 70°C

Applications

Domestic appliances
Electrical appliances
Instrumentation amplifiers
Computer hard drives

Certifications

UL approved
CSA certified

Approvals

UL recognised component, CSA certified, IMQ, SEMKO, VDE

Техническая спецификация
pdfSEMKO 9950153/02-04
pdfPF0011/15/63 Datasheet
