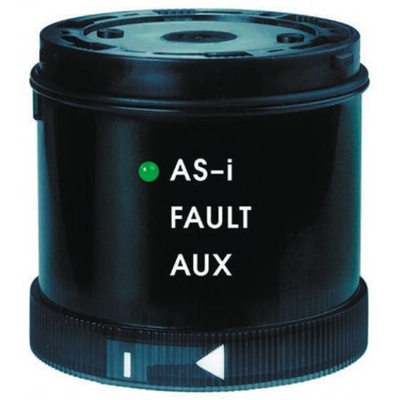

646.810.55, Werma AS-I Element for Use with KombiSIGN 71

AS-Interface Elements for KombiSIGN 71

The AS-Interface element enables signal tower communication by connecting actuators to the Actuator-Sensor-Interface networking system. The AS Interface element is available with either Standard Slave or the A/B technology. The standard slave models are able to address up to 31 modules and trigger four tiers. The A/B technology makes it possible to address up to 62 modules and trigger three tiers. The element is mounted as the first tier of the individual signal tower directly on top of the terminal element. Can be used with the following signal elements: Permanent light, flashing light, LED, buzzer and siren

Features and Benefits

• LEDs indicate current status
• Voltage supply switchable from internal bus supply to additional external voltage supply
• Addressing socket
• Reduction in complex wiring
• IP65 protection

Standard Slave AS-Interface

• Standard Slave with 31 addresses
• Max. 4 signal elements possible

A/B Slave AS-Interface

• A/B-Slave with 62 addresses
• Max. 3 signal elements possible

Approvals

cULus, CE, ASI, GOST-R.
