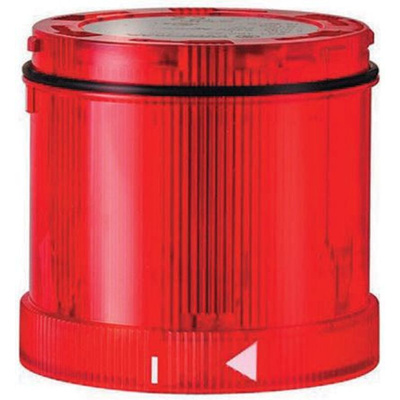

644.110.75, Werma 644 Series Red Blinking Effect Beacon Unit, 24 V dc, LED Bulb, AC, DC, IP65

WERMA Flashing Red LED Beacon, 24V DC, 66mm Height - KombiSIGN 71 Series - 644.110.75

This flashing red beacon from WERMA is ideal for drawing attention to faults and hazardous situations in your industrial workspace. It's used in conjunction with WERMA's terminal unit (481-935) to create a stacking signal tower. The lens features a bayonet fixing that clicks into place and keeps the unit firmly in position for enhanced security. Thanks to the integrated contact system, installation is quick and simple without the need for specialised tools.

Features & Benefits

• O-ring seal ensures optical isolation so illumination is restricted to each individual element
• IP65 (ingress protection) rating for protection against dust and low-pressure water jets
• Low current consumption of <
30mA for energy-efficient operation
• Wide operating temperature range of -20°C to +50°C for use in demanding environments

Applications

• Logistics and shipping
• Mechanical engineering
• Machine safety

How many elements can I fit to one signalling tower?

The KombiSign 71 modular tower allows you to stack up to five units together, excluding the terminal unit. You can configure the stack with a combination of visual and audible components for a versatile signalling system.

Machine Guarding and Safety Range Overview

Datasheet

Datasheet - 644.110.75
