644.310.75, Werma 644 Series Yellow Blinking Effect Beacon Unit, 24 V dc, LED Bulb, AC, DC, IP65

Stacking Signal Tower - KombiSIGN 71, 70 mm, IP65

The WERMA KombiSIGN 71 modular stacking signal tower is an ideal solution to the increasing requirement for safety, machine productivity and reduced downtime. The modular design of these stacking towers enables quick and easy installation. Each KombiSIGN module is equipped with a bayonet fixing with integral contact system. Simply align the corresponding white marks and gently twist to lock them in place.

Features and Benefits

• Suitable for machine and manual Andon indication
• Modular system allows a completely free combination of optical and audible signal elements
• Mechanical and electrical connection of the elements in the space of seconds using a bayonet connection system
• Completely safe element changes (contact-voltage proof) without the need for tools
• Protection rating IP65 for use in extreme conditions
• Up to 5 elements can be mounted on a terminal base
• Flexible combination of optical and audible elements
• Optical isolation due to O-ring seal stopping illumination of adjacent element
• Operating voltage for the continuous incandescent element is dependant on bulb fitted
• LED EVS elements have an extremely bright, random sequence of light to immediately grab attention
• Ultra-bright elements are up to 20 times brighter than conventional LED beacons. Intelligent electronics ensure operation at maximum brightness
• Vocal element plays customer specific audio files in mp3 format (sounds, alarms, music or spoken word)
• Optional self adjusting siren automatically adjusts output between 80 & 100 dB depending on ambient sound levels
• AS-Interface element can be easily connected to the networking system which considerably reduces complex wiring
• Improved connection with cage clamp technology
• Operating temperature range is -20 to +50 °C
• Polyamide body with polycarbonate lenses, 70 mm diameter

Permanent Multi-colour LED Light Element

• Seven colours in one beacon
• Different colours can be triggered via the pins in the terminal element
• Positive and negative control logic
• The three basic colours (red/yellow/green) can be triggered using only two PLC outputs
• High light intensity

Note

Lamps are not supplied and must be purchased separately. Not compatible with KombiSIGN 70.

Approvals

UL listed, CSA, VDE

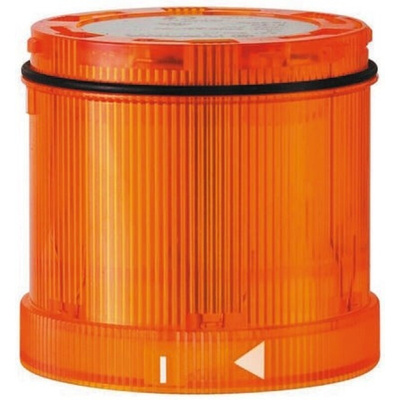

WERMA Yellow Flashing Beacon, 24V DC, 66mm Height - KombiSIGN 71 Series - 644.310.75

Use this yellow flashing beacon from WERMA as part of a signal tower for enhanced safety in your workplace. It's equipped with a bayonet fixing that allows you to twist it into place for quick and easy assembly. You can stack it with both optical and audible elements from the KombiSIGN 71 series for enhanced versatility. Thanks to its low operational current of 30mA, this beacon is an energy-efficient choice. Its long optical service life of at least 50,000 hours means it won't need frequent replacement.

Features & Benefits

• O-ring provides optical isolation to prevent illumination of the adjacent unit
• Broad operating temperature range of -20°C to +50°C for use in harsh environments
• IP65 (ingress protection) rating means it's protected against dust and low-pressure water jets
• Light weight of 59g to ensure minimal strain on your equipment

Applications

• Factory floors
• Construction industry
• Industrial automation

How many lighting and sound elements can I stack together?

You can stack up to five elements onto a base, allowing you to build a signal tower that meets your specifications.
