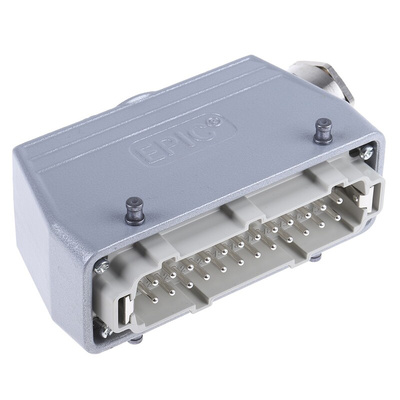

10113000+10196000+12954500, Epic Contact Plug Kit, 24 Way, 16A, Male, H-BE, 440 V

LAPP Heavy-Duty Power-Connector Plug Kit, 24 Contacts, 16A Current Rating - Epic Contact Series - 10113000+10196000+12954500

Do you need to protect your power supply from harsh conditions? Use this heavy-duty plug kit from LAPP. The included hood has an IP65 rating, indicating it provides total protection against dust and low-pressure water jets. This makes the plug suitable for use in outdoor applications. With its silver-plated copper alloy contacts, the supplied insert is highly conductive to ensure an efficient and reliable power supply.

Features & Benefits

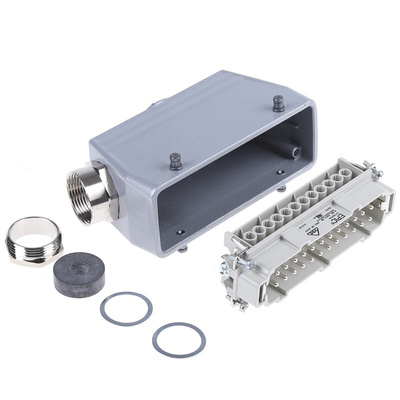

• Supplied with a metal cable gland to prevent damage from corrosion
• Aluminium housing protects sensitive components against impacts
• Screw termination method supports stable connections, even with vibration
• Supports wire cross-sections between 0.5 and 2.5mm² for wide compatibility

Applications

• Railway applications
• Woodworking industry
• Outdoor electrical substations

Do I need to add earth protection to this power connector plug?

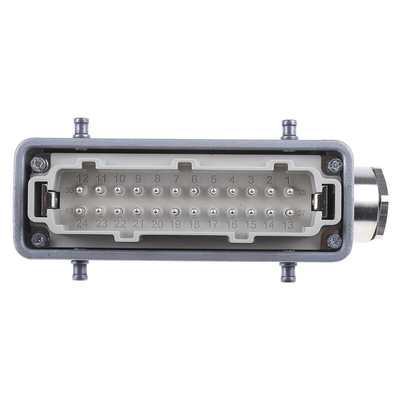

There's no need to add earthing as the plug's 24-pin insert includes a protective earth connection.
