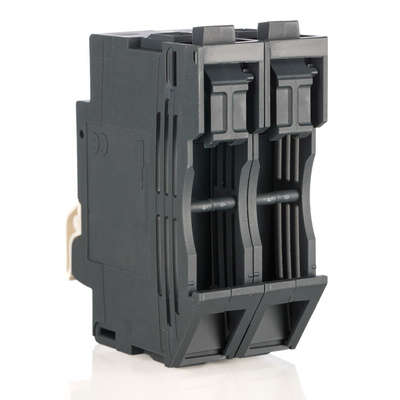

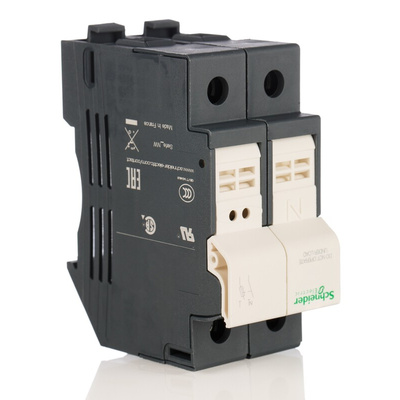

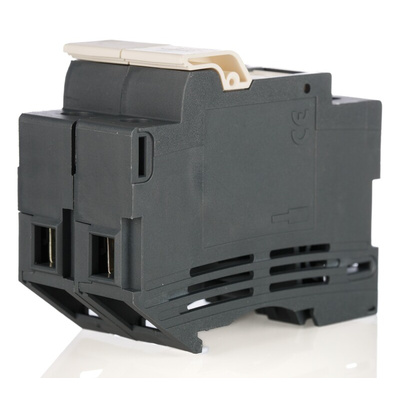

DF101N, Schneider Electric 32A Rail Mount Fuse Holder for 10 x 38mm Fuse, 1+N, 690V ac/dc

Schneider Electric TeSys Fuse Holder, Rail Mount, 32A - DF Series - DF101N

Reduce the risk of equipment damage with this fuse holder from Schneider Electric's TeSys range. The holder features a compact and modular configuration that's easy to install and takes up minimal space on a DIN rail. For increased worker safety, the unit is rated IP20 (ingress protection) indicating it's touch-proof and protected against objects larger than 12mm. This fuse holder is designed to fit standard cylindrical fuses with dimensions of 10 x 38mm.

Features & Benefits

• Fitted with an ergonomic handle for easier opening
• Dual-position locking system for easy DIN rail mounting
• Helps to enhance the overall reliability of a low-voltage system

Applications

• Distribution, control and starter motors
• Buildings and industrial infrastructure
• Commercial electrical installations

Why do I need an electrical fuse?

A fuse is an important electrical safety device, which offers overcurrent protection to an electrical circuit. Its essential component is a metal wire or strip that melts when too much current flows through it. This then stops or interrupts the current and helps to prevent damage to downstream devices.

Can I mark the poles on this fuse holder?

Yes, you can – a clip-in marker holder is supplied with this device.

Standards

IEC 60947-3, UL 512, CSA 22-2 n° 39
