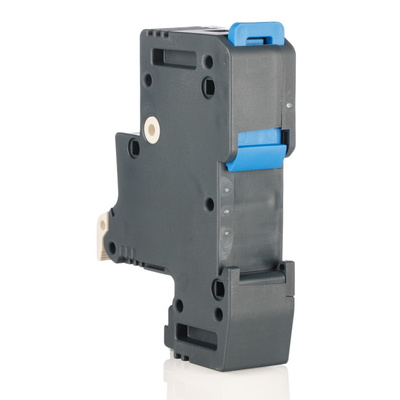

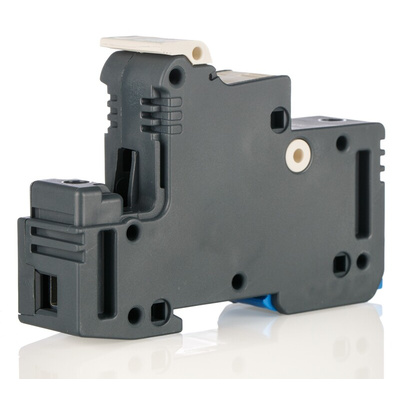

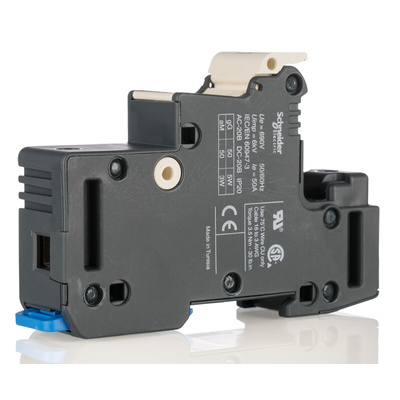

DF141, Schneider Electric 50A Rail Mount Fuse Holder for 14 x 51mm Fuse, 1P, 690V ac

DF fuse-holders

Range of DIN rail supports for fuses and tubes.
These fuse holders without indicator light are available in neutral, single pole, double pole, three pole and three pole + neutral versions.
Assembly kits (including a pin and staples for assembling 2 fuse holders together) for assembling several fuses as well as auxiliary pre-cutoff and blown fuse indicator contacts are available separately.

Schneider Electric Rail Mount Fuse Holder, For Class CC Fuses, 14 x 51mm Fuse Size - TeSys DF Series - DF141

Keep your fuse in shipshape condition using this DIN rail mount fuse holder from Schneider Electric. It holds a fuse securely to minimise the chance of damage, so you can count on a quick reaction if your power supply is unstable. It's designed for use with class CC fuses that measure 14 x 51mm and protects circuits with voltages up to 50A/690V AC. For snappy installation or removal, simply clip the holder onto a 35mm DIN rail. Thanks to compact dimensions of 111 (H) x 26.5 (W) x 76.5mm (D), this fuse carrier needs minimal packing space.

Features & Benefits

• IP20-rated housing is touch-proof and protected against tools larger than 12mm
• Light weight of 140g puts minimal strain on the rail
• Compatible with gG and aM fuse types for versatility

Applications

• Automotive manufacturing
• Lighting systems
• Pharmaceutical industry
• Hospitals and medical centres

How do I wire this fuse holder?

The holder's screw clamp terminals allow for easy wiring using only a screwdriver. They also grip conductors firmly, making the unit low-maintenance.

Standards

IEC 60947-3, UL 512, CSA 22-2 n° 39
