ABL8BBU24200, Schneider Electric Battery Charger DIN Rail Power Supply, 24 → 28.8V dc Input, 24V dc dc Output, 2A Output, 7W, Блок питания

ABL 8BBU battery control modules and ABL 8BPK battery

For applications sensitive to power interruptions, the battery control modules are used to supply voltage after the network has been cut off, allowing for a back-up of the current values or the protection of certain actuators supplied with 24 Vdc.
Retaining duration is 9 minutes for 40 A and 2 hours for 1 A (according to the combination of control module/battery unit and charge).
Each battery module consists of lead acid batteries (two in series) and automotive fuse protection.
Only these modules are compatible with the ABL 8BBU series battery control modules.

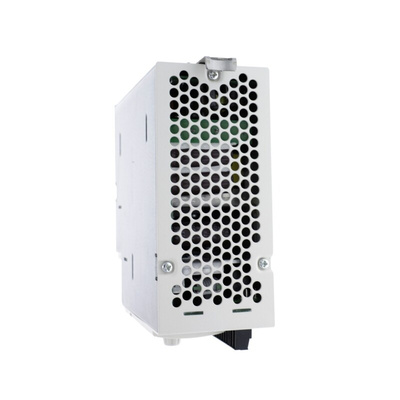

Schneider Electric Battery Control Module, 500V Dielectric Strength, Vibration Resistant - Phaseo Series - ABL8BBU24200

Boost backup batteries and bridge supply failures with this battery control module from Schneider Electric. It supplies direct current voltage you can use to charge a unit's built-in cells. When paired with a UPS such as the Modicon ABL8RP or ABL8WP, itgives you a reliable way of running network equipment from battery power. This means you can safely bypass mains outages without losing important data or risking damage to your devices. As this unit offers speedy switching from network to battery power, it also slashes the chances of disturbances on your critical lines.

• Compact design of 80 (H) x 80 (W) x 60mm (L) to slot neatly into a busy setup
• Safely insulated between the input/output and ground to a dielectric strength of 500V
• Mean time between failures of 718,708 hours at 24V DC for long-lasting performance
• Vibration-resistant, making it safe to use near moving machinery
• Operating temperature range of -25°C to +60°C for use in harsh environments

Applications

• Telecommunications networks
• Schools and universities
• Server rooms

How do I install this product?

This battery module simply snaps onto a standard 35mm DIN rail, giving you quick and simple mounting.

Standards

CB scheme EN60950-1, UL, cCSAus
