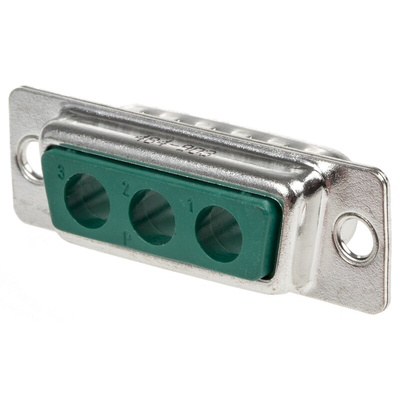

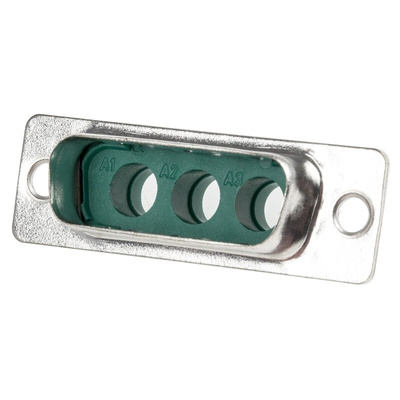

FM3W3P-K120 / 1727040031, FCT from Molex FM 3 Way Panel Mount D-sub Connector Plug, Разъем

FCT from Molex D-Sub Connector, 3 Contacts, 39.1 (L) x 12.5mm (W) - FM Series - FM3W3P-K120 / 1727040031

Use this FCT from Molex D-sub connector to provide a secure and reliable, semi-permanent electrical path between two components. For convenience, the mixed-contact device provides both signal and power connections in a single unit. A robust steel shell resists corrosion for longevity in humid conditions, while gold-plated contacts help to ensure optimal electrical flow to keep your system running smoothly. Thanks to solder terminals, you can be sure of a firm attachment of wires to the connector.

Features & Benefits

• Reusable as you can mate and un-mate the connector up to 500 times
• Flame-retardant for safety, so won't catch alight if there's a fire
• Wide operating temperature range of -55°C to +130°C makes it compatible with extreme operating conditions

Applications

• Data centres
• Industrial process control
• Packaging warehouses

How many contacts does this connector have?

This versatile connector has three contacts to support three connections.

Mixed Contact 'D'

Mixed contact connectors suitable for making combined signal and power connections. Plug and socket options with solder bucket or 90° PCB terminations. Shell definition: 17W2 shell can have 17 mixed contacts in total. Shell is supplied with 15 signal contacts and has 2 cavities for power or coaxial contacts. Suitable for military, industrial or commercial applications and computer interfacing etc

D-Sub Mixed Layout Connectors Datasheet

Datasheet - FM3W3P-K120 / 1727040031

Datasheet
