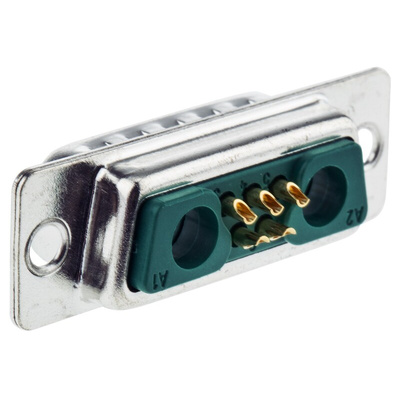

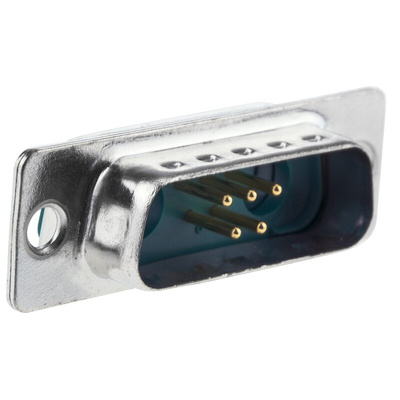

FM7W2P-K120 / 1731070059, FCT from Molex FM 7 Way Panel Mount D-sub Connector Plug, 2.84mm Pitch, Разъем

Plug and Socket Shells

Signal contacts with solder bucket terminations
Cavities for power/coaxial contacts (available separately)

Note

Panel mounting dimensions are as the equivalent standard ’D’ connector shell size.

FCT from Molex D-Sub Connector, Rear Panel Mounting, 2.84mm Pitch Termination Interface - 173107 Series - FM7W2P-K120 / 1731070059

Use this D-sub connector by FCT from Molex to support serial communication in your system. When soldered to your PCB, this straight male unit lets you plug in compatible cables and send data using RS-232 protocols. Its shielding prevents crosstalk to keep signals crisp and clear, even when there's noisy equipment nearby. As it tips the scales at 6g, this is a lightweight contender that won't strain your setup.

Features & Benefits

• Accepts wires with a 20AWG cross-section for use with standard cabling
• IP20 rating indicates it's touch-proof and protected against objects larger than 12mm
• Gold contact plating prevents rusting, so it's suitable for humid work settings

Applications

• Power supply units
• Computer systems
• Recording studios
• Consumer electronics

Is this product suitable for harsh work areas?

Yes. The unit withstands temperatures from -55°C to +130°C, so it's suitable for use in challenging settings like factories and warehouses.

Mixed Contact 'D'

Mixed contact connectors suitable for making combined signal and power connections. Plug and socket options with solder bucket or 90° PCB terminations. Shell definition: 17W2 shell can have 17 mixed contacts in total. Shell is supplied with 15 signal contacts and has 2 cavities for power or coaxial contacts. Suitable for military, industrial or commercial applications and computer interfacing etc

D-Sub Mixed Layout Connectors Datasheet

Datasheet

Datasheet - FM7W2P-K120 / 1731070059

Line Drawing - FM7W2P-K120 / 1731070059
