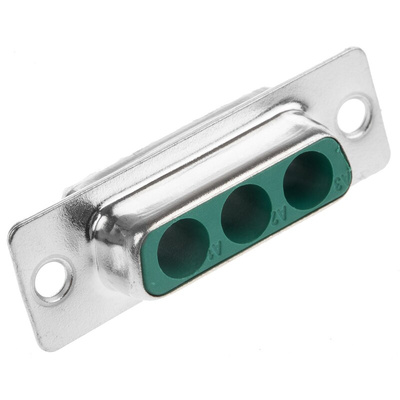

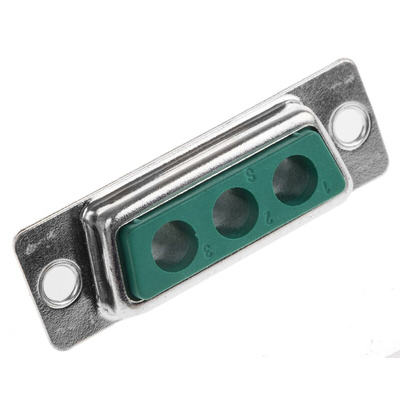

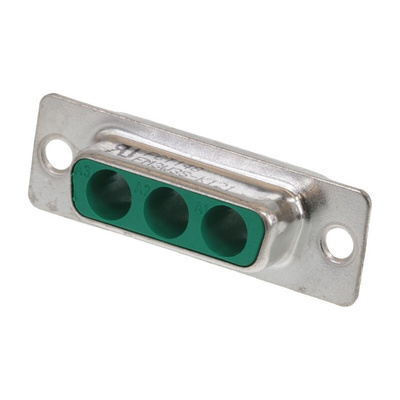

FM3W3S-K121 / 1727040032, FCT from Molex FM 3 Way Panel Mount D-sub Connector Socket, Разъем

Plug and Socket Shells

Signal contacts with solder bucket terminations
Cavities for power/coaxial contacts (available separately)

Note

Panel mounting dimensions are as the equivalent standard ’D’ connector shell size.

FCT from Molex D-Sub Connector, Female, Steel Housing - FM Series - FM3W3S-K121 / 1727040032

Boost the connectivity of control panels and computer devices with this FCT from Molex D-sub connector. The versatile mixed layout means you can use it with coaxial, power and pneumatic contacts. Fitted with flanges on either side of the socket, it's straightforward to mount. The component features copper-alloy contacts with gold-over-nickel plating, so you can be sure your connections are dependable and durable. Solder cups keep your wires in place as you solder to ensure your wires are reliably terminated.

Features & Benefits

• Safe to use in hazardous environments, thanks to a vast operating temperature range between -55°C and +130°C
• Resin insulation and electrical shielding keeps connections safe and sound
• Polarised mating part prevents plugging-in errors

Applications

• Test and measurement
• Security systems
• Computer peripherals
• Telecommunications networks

What's this unit's shell made from?

The connector's shell is made from strong steel with tin plating for corrosion resistance.

Mixed Contact 'D'

Mixed contact connectors suitable for making combined signal and power connections. Plug and socket options with solder bucket or 90° PCB terminations. Shell definition: 17W2 shell can have 17 mixed contacts in total. Shell is supplied with 15 signal contacts and has 2 cavities for power or coaxial contacts. Suitable for military, industrial or commercial applications and computer interfacing etc

D-Sub Mixed Layout Connectors Datasheet

Datasheet

Line Drawing - FM3W3S-K121 / 1727040032
