T3P16FC1LZ / 192991-0041, ITT Cannon Female Crimp Circular Connector Contact, Wire Size 16 AWG, Контакты разъема

3-part contacts for crimping

These gold-plated contacts are designed for use with Trident housings.
Contacts are colour-coded to identify different gauges.
Fitted with separate retention springs.
Their design allows for great tolerance of poorly aligned contacts.

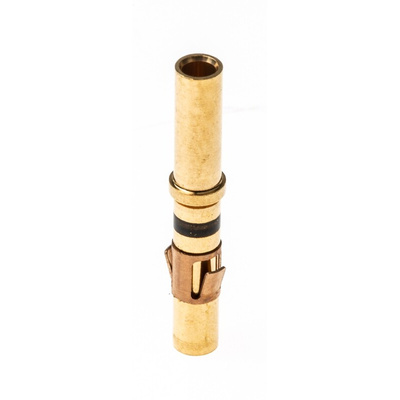

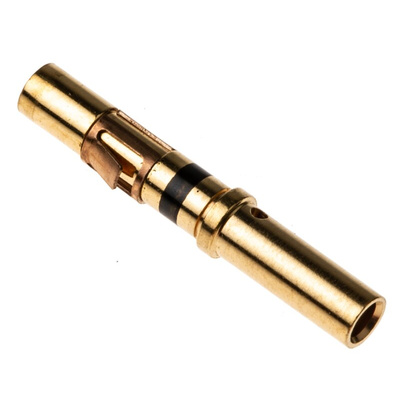

ITT Cannon Socket Contact

The ITT Cannon T3P series female socket contact has a wire size ranging size between 16AWG and 18AWG. This contact is made of brass and has gold flash plating. It can be used with the Trident T3P system.
ITT TNM shielded
The TNM connector range builds on the popular Trident and Neptune ranging from ITT Cannon. They feature full metal construction, giving high reliability and durability.
RF shielding inherent in the full metal construction
Backshells enable cable braid termination so meeting EMC requirements
Signal versions have the same planform and contact arrangements as the QM range, so upgrading and interchangeability can be achieved.
Includes a rear rubber seal that enables IP67 rating to be maintained if only some contacts are used. The rubber seal can be discarded if a backshell is to be used. Both are rated to IP67.
Cable, chassis and jam nut configurations available in standard and reversed formats.
One, two or three-part crimp contacts, also solder cup and PCB terminating contacts available for signal transfer. Power contacts are only required for power/signal connector types.

Features and Benefits

Current rating is 13A
Cable mount
Crimp termination

Trident Ringlock connectors

Range of Trident Ringlock cylindrical connectors using "Trident" detachable crimped contacts. Coupling is created with a ramp system, locking with a bayonet system, with polarisationusing 5 positioning keys.

Trident Range Contact Product Data

ITT Cannon Trident Connectors Catalogue
