RS PRO Brass Reduced Bore, 3 Way, Ball Valve, BSPP 1/2in, 40bar Operating Pressure, Шаровой кран

RS PRO Brass Reduced Bore Ball Valve, 1/2 in BSPP, 3 Way

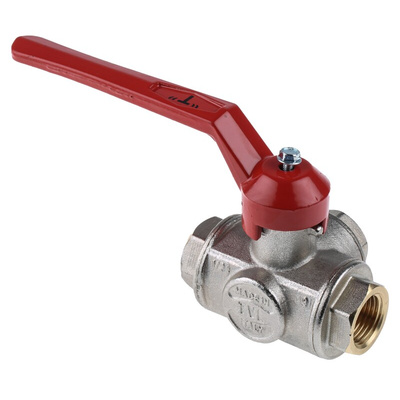

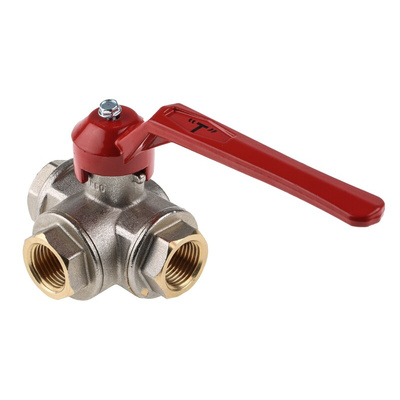

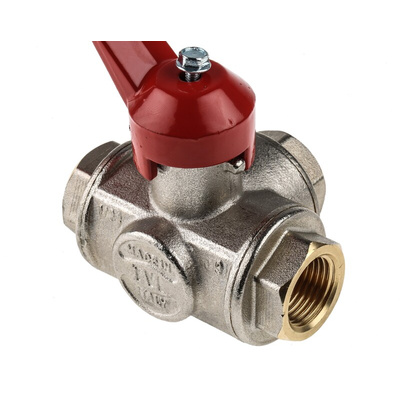

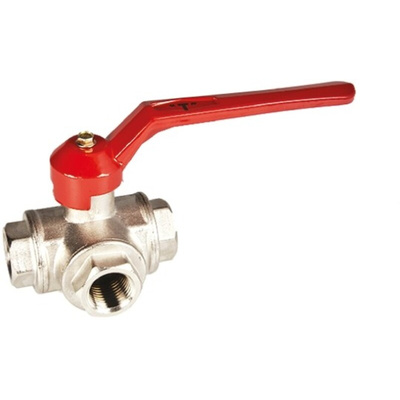

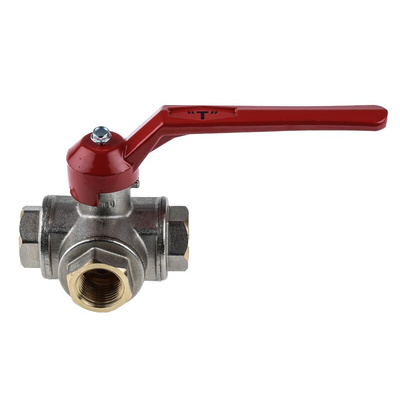

This ball valve from RS PRO is used to control fluid flow in piping systems. It has a T-port configuration, which means it can transmit fluid in three directions. The body and ball are made of brass, so it has excellent resistance to corrosion and is built to last. This type of valve is frequently found in communal areas of residential buildings and office blocks, as well as factories and warehouses.
This valve has three female threaded ports that make for quick and easy installation and the stem has two nitrile rubber (NBR) o-rings to prevent leakage. With a maximum pressure of 30 bar, it's able to withstand high-pressure fluids without breaking. This valve is suitable for transporting hot water, pressurised air and oils. It complies with Restriction of Hazardous Substances (RoHS) standards, meaning it contains only minimal amounts of any harmful materials.

Features and Benefits

• Threaded attachment
• Brass body and ball
• Threaded connection size of 1/2 in or 15 mm
• BSPP (British Standard Parallel Pipe) thread standard
• Red lever handle
• Aluminium alloy handle
• Maximum working pressure of 30 bar
• Safe for use with air, oil, steam and water
• Three-way type

RS Pro Datasheet
