RS PRO Brass Reduced Bore, 3 Way, Ball Valve, BSPP 1/4in, 40bar Operating Pressure, Шаровой кран

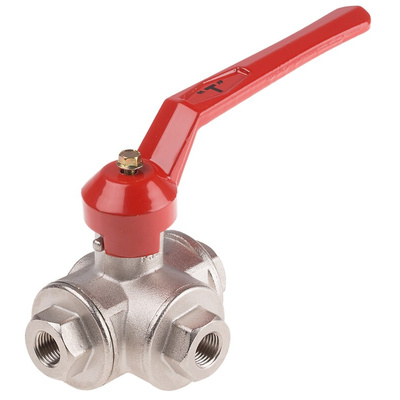

RS PRO Brass Reduced Bore Ball Valve, 1/4 in BSPP, 3 Way

This RS PRO ball valve controls fluid flow in piping networks. Its T-port configuration lets it transmit fluid in three different directions. This kind of valve is often found in the communal areas of offices and residential complexes, as well as warehouses and factories.


The ball and body are made of a durable, corrosion-resistant brass material for long-lasting performance. This valve features three female threaded ports, making it quick and simple to install. To prevent leakage, the stem has two NBR (nitrile rubber) O-rings.


This product conforms to the RoHS (Restriction of Hazardous Substances) requirements, which means it contains only trace amounts of any harmful materials. This valve is suitable for transporting oils, hot water and pressurised air, and its maximum working pressure of 30 bar means it can withstand high-pressure fluids without breaking.

Features and Benefits

• Threaded attachment


• Brass body and ball


• Threaded connection size of 1/4 in or 8 mm


• BSPP (British Standard Parallel Pipe) thread standard


• Red lever handle


• Aluminium alloy handle


• Maximum working pressure of 30 bar


• Safe for use with air, oil, steam and water


• Three-way type

RS Pro Datasheet
