RS PRO Brass Reduced Bore, 3 Way, Ball Valve, BSPP 1in, 40bar Operating Pressure, Шаровой кран

RS PRO Brass Reduced Bore Ball Valve, 1 in BSPP, 3 Way

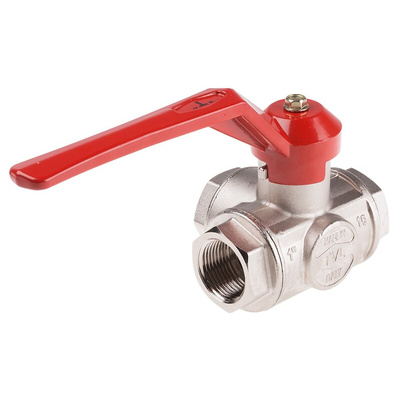

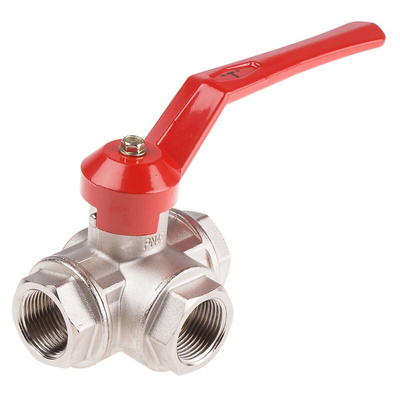

This RS PRO ball valve is used to regulate fluid flow in piping systems. It can transmit fluid in three directions as it has a T-port configuration. Thanks to the brass construction of the ball and body, the component is resistant to corrosion and long-lasting. You'll frequently find this type of valve in the communal spaces of residential buildings and office blocks, as well as warehouses and factories.


The stem contains two nitrile rubber (NBR) O-rings to prevent leaking. The valve's three female threaded ports make for quick and easy installation. It can tolerate high-pressure fluids without breaking, thanks to its maximum working pressure of 30 bar.


This valve can be used to transmit hot water, compressed air and oils. It meets the Restriction of Hazardous Substances (RoHS) requirements, so it contains only trace levels of any harmful materials.

Features and Benefits

• Threaded attachment


• Brass body and ball


• Threaded connection size of 1 in or 25 mm


• BSPP (British Standard Parallel Pipe) thread standard


• Red lever handle


• Aluminium alloy handle


• Maximum working pressure of 25 bar


• Safe for use with air, oil, steam and water


• Three-way type

RS Pro Datasheet
