RS PRO Brass Reduced Bore, 3 Way, Ball Valve, BSPP 3/4in, 45bar Operating Pressure, Шаровой кран

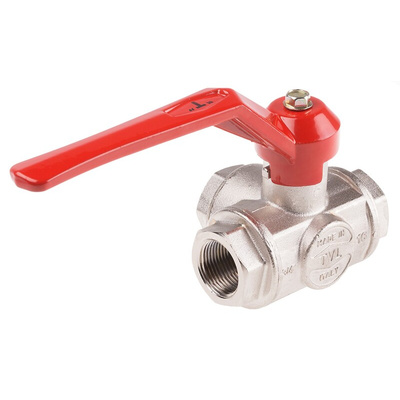

RS PRO Brass Reduced Bore Ball Valve, 3/4 in BSPP 3 Way

This RS PRO ball valve is used to control fluid flow in piping systems. It has a T-port arrangement that allows it to transport fluid in three directions. As the body and ball are made of brass, it has exceptional corrosion resistance for long-lasting, reliable performance. This type of valve is commonly used in the shared areas of residential complexes, office buildings, factories and warehouses.


For quick and easy installation, this valve has three female threaded ports. It also has two nitrile rubber (NBR) O-rings on the stem to prevent leaking. It can tolerate high-pressure fluids without breaking as it has a maximum working pressure of 30 bar.


This valve meets the Restriction of Hazardous Substances (RoHS) standards, meaning it contains only minimal amounts of any harmful materials. Use this valve to transport oils, pressurised air and hot water.

Features and Benefits

• Threaded attachment


• Brass body and ball


• Threaded connection size of 3/4 in or 20 mm


• BSPP (British Standard Parallel Pipe) thread standard


• Red lever handle


• Aluminium alloy handle


• Maximum working pressure of 25 bar


• Safe for use with air, oil, steam and water


• Three-way type

RS Pro Datasheet
