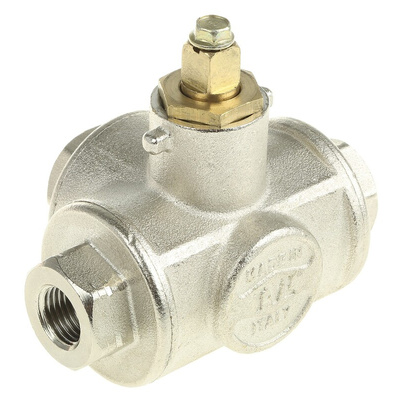

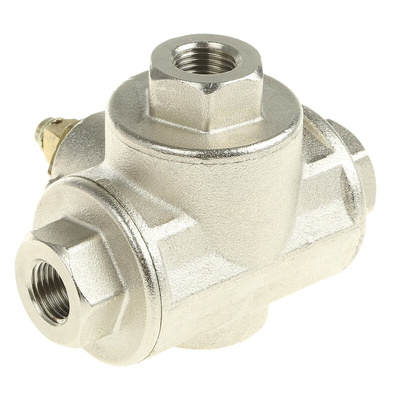

RS PRO Brass Reduced Bore, 3 Way, Ball Valve, BSPP 1/4in, 30bar Operating Pressure, Шаровой кран

Brass Quarter-Turn L or T Ball Valves

S.100/101 reduced bore ball valves with either 'L' or 'T' port configuration. The valves are suitable for oil, air, water, saturated steam or high temperature hot water services in domestic, commercial and industrial applications.

T-Port Configuration Valves are:
• 486-243 - 1/2 in BSPP
• 486-249 - 1/4 in BSPP
• 486-255 - 3/8 in BSPP
• 486-265 - 1 in BSPP
• 486-271 - 1-1/4 in BSPP
• 486-287 - 3/4 in BSPP

L-Port Configuration Valves are:
• 486-176 - 1 in BSP
• 486-312 - 1/4 in BSP
• 486-322 - 3/8 in BSP
• 486-328 - 3/4 in BSP
• 486-338 - 1/2 in BSP

Features and Benefits:

Operating Temperature -10ﾟC / +120ﾟC
Operating pressure : see non-shock cold working pressure chart on data sheet
Threads : ISO 228 parallel female threads
Port : reduced
Connections options : female
Stem Configuration : Blowout-proof nickel plated brass stem, with two NBR O-rings at the stem
Ball seats : Pure PTFE self-lubricating
100% Made in Italy
Chrome plated brass ball for longer life
Silicone-free lubricant on all seals
Quality : Finest brass according to EN 12165 and EN 12164 (formerly DIN 17660 and UNI 5705-65) specifications

Note

Approvals apply to specific configurations only

Warning

Freezing of the fluid in the installation may severely damage the valve

Approvals

GOST-R (Russia)
Expert Conclusion (Russia)
EAC Conforming (Russia)
UkrSepro (Ukraine)
RoHS Compliant

RS Pro Datasheet
