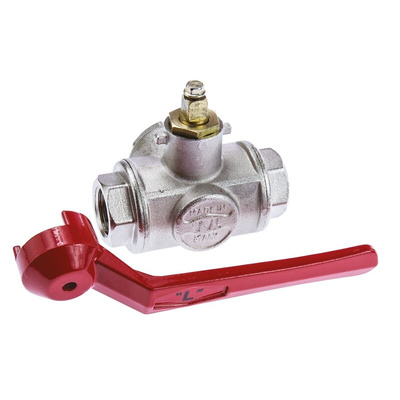

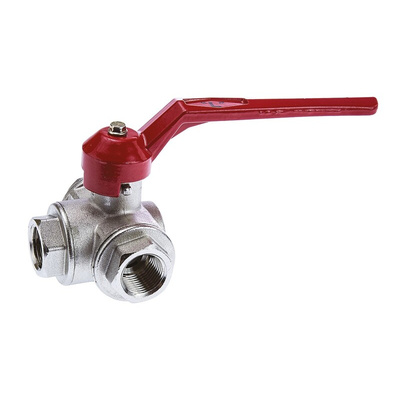

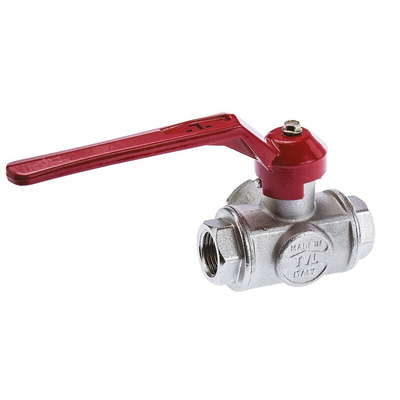

RS PRO Brass Reduced Bore, 3 Way, Ball Valve, BSPP 1/2in, 40bar Operating Pressure, Шаровой кран

RS PRO Brass Reduced Bore Ball Valve, 1/2 in BSP 3 Way

This RS PRO ball valve is used to manage fluid flow in piping systems. Its L-port construction means it can transmit fluid in three directions. You can use this valve for high-pressure fluids as it can sustain a maximum pressure of 30 bar without breaking.


The valve is made of brass, so it's resistant to corrosion to ensure it will last a long time. The stem contains two nitrile rubber (NBR) O-rings to prevent leaking, and the three female threaded ports make it quick and easy to install.


This valve can be used to transmit hot water, compressed air and oils in a range of domestic and commercial environments. It meets Restriction of Hazardous Substances (RoHS) requirements, which means it contains only trace levels of any harmful materials.

Features and Benefits

• Threaded attachment


• Brass body and ball


• Threaded connection size of 1/2 in or 15 mm


• BSPP (British Standard Parallel Pipe) thread standard


• Red lever handle


• Aluminium handle


• Maximum working pressure of 30 bar


• Safe for use with air, oil, steam and water


• Three-way type

RS Pro Datasheet
