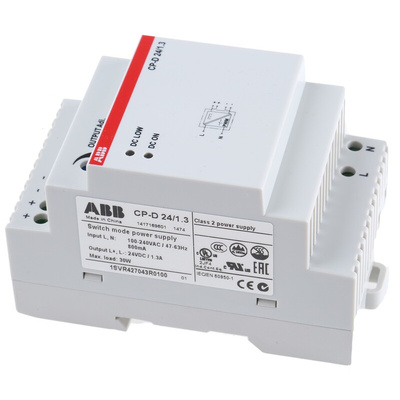

1SVR427043R0100 - CP-D 24/1.3, ABB CP-D Switch Mode DIN Rail Power Supply, 90 → 264V ac ac, dc Input, 24V dc dc Output, 1.3A Output, 30W, Блок питания

ABB DIN Rail Power Supply

The ABB DIN rail CP-D range primary clocked switching power supply has an input voltage ranging between 90VAC and 264VAC/120VDC and 370VDC. It has an output current rating of 1.3A at 24VDC output voltage. It has a further feature where the output voltage can be adjusted via a front-face rotary potentiometer. This output voltage is adjustable within a range between 24VDC and 28VDC.
Note:
Redundancy unit CP-D RU for decoupling of CP range power supply units with two inputs, each up to 5A per channel and 1 output up to 10A ensures automatic redundant power supply operation for critical applications or enables increased power by two parallel-connected power supplies.

Features and Benefits

Free convection cooling
High efficiency of up to 83%
Idle, overload and continuous short circuit proof
Integrated input protection
LED for status indication
Low power dissipation and low heating
Operating temperature ranging between -25°C and 70°C
Power rating is up to 30W
Redundancy units offering true redundancy
Wide input range

Applications

Industrial environments
ITE commercials
Powerful motor starts

Certifications

CAN
CSA
UL approved
IP20 Rated
