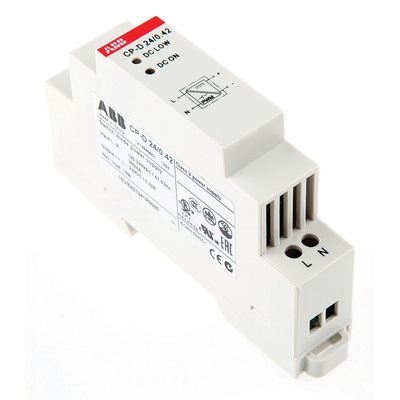

1SVR427041R0000, ABB CP-D Switch Mode DIN Rail Power Supply, 90 → 264V ac ac, dc Input, 24V dc dc Output, 400mA Output, 10W, Блок питания

ABB DIN Rail Power Supply, LED Indication, 80% Efficiency - CP-D Series - 1SVR427041R0000

Need a safe source of energy for sensitive DC-compatible components? Trust this DIN rail power supply from ABB to keep things ticking over. It takes an input between 90 and 264V AC or 120 and 375V DC and steps it down to a stable output of 24V DC that's handy for charging battery-boosted devices. As this model offers continuous load adjustment, it's a piece of cake to tweak it to suit your application. This helps it compensate for voltage drops caused by long cables, for instance. A broad operating temperature range from -40°C to +70°C means it's a great shout in harsh environments.

Features & Benefits

• Typical efficiency of 80% means it wastes little energy as heat and doesn't need a heatsink or fan to keep cool
• IP20 rating means it poses no shock risk so is safe to handle
• Buffering time of at least 30ms reduces unnecessary reboots for consistent power supply in case of mains failures

Applications

• HVAC equipment
• Process control
• Pumping systems

How safe is this PSU?

Thanks to its integrated input fuse and continuous short-circuit protections, you can count on this device to shield you and your equipment from the harmful effects of excess current or overvoltage.

Approvals

UL, CAN, CSA

Standards

UL, CAN, CSA

CP-D Range PSU Data Sheet

Datasheet - 1SVR427041R0000

Manual - 1SVR427041R0000

Catalogue - Command and Signalling
