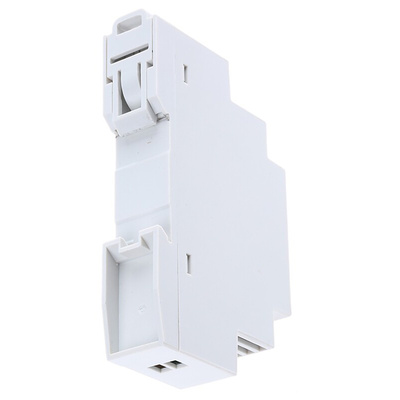

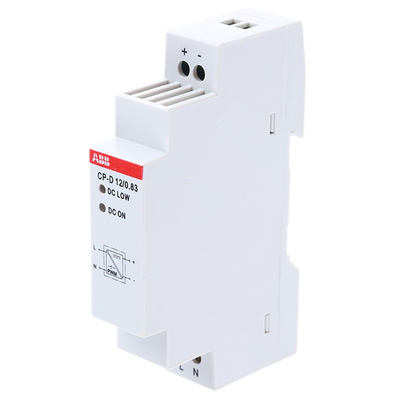

1SVR427041R1000 - CP-D 12/0.83,1SVR4, ABB CP-D Switch Mode DIN Rail Power Supply, 90 → 264V ac ac, dc Input, 12V dc dc Output, 800mA Output, 10W, Блок питания

ABB DIN Rail Power Supply, 0.83A Output Current, 78% Efficiency - CP-D Series - 1SVR427041R1000 - CP-D 12/0.83,1SVR4

Choose this DIN rail power supply from ABB as a safe energy source for your DC-compatible components. It's a versatile option that handles input voltages from 90 to 264V AC or 120 to 370V DC and delivers a stable 12V DC output. A thermal efficiency of 78% means the unit wastes little energy as heat. As it relies on free convection alone to prevent overheating, you won't need a fan, which helps reduce maintenance needs.

Features & Benefits

• Rated output of 10W for safe use in low-power applications
• Continuous short-circuit protection helps prevent damage caused by overcurrent
• Easy-to-read LEDs indicate operating status
• Compact dimensions of 18 (W) x 91 (H) x 57.5mm (D) save space in your distribution panel

Applications

• HVAC systems
• Automotive industry
• Distribution cabinets

Can I adjust this device's output voltage?

The load rating of this power supply is non-adjustable. You should choose it if you need a reliable 12V DC output with load regulation of ±1%.

This component snaps onto a DIN rail with no need for tools, so it’s simple to mount.

Approvals

UL, CAN, CSA

Standards

UL, CAN, CSA

CP-D Range PSU Data Sheet

Instruction Sheet - 1SVR427041R1000 - CP-D 12/0.83,1SVR4

Catalogue - Primary Switch Mode Power Supplies
