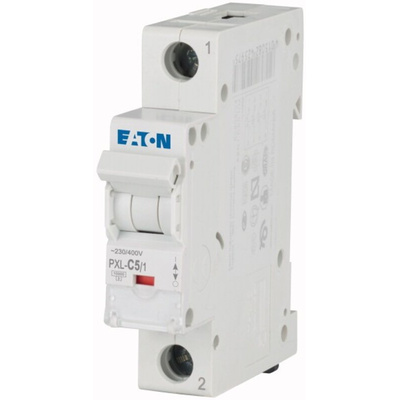

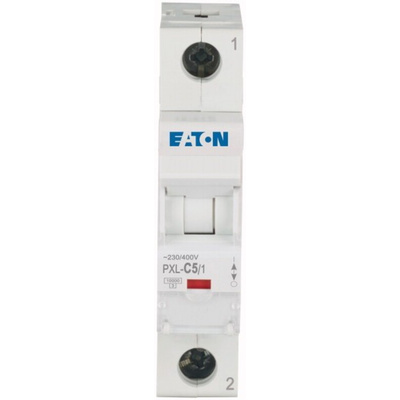

236052 PXL-C5/1, Eaton xPole PXL, S200 MCB, 1P, 5A Curve C, 400V AC, 48V DC, 10 kA Breaking Capacity

Eaton MCB, 4kV Impulse Withstand Voltage, IP20 Rating - PXL Series - 236052 PXL-C5/1

When high-performance breaking for heavy-duty applications is on your must-have list, look to this MCB from Eaton. The type-C breaker cuts electricity immediately when it receives between five and ten times its rated load of 5A. As a result, you can count on it to shield you and any connected devices from harmful excess current. An impulse withstand voltage of 4kV also makes the unit a practical choice for boosting safety in commercial and industrial settings where equipment like motors or pumps pull substantial start-up surges. To help minimise unnecessary downtime, you can use a separate pre-fuse with this product. This levels up your system's selectivity and stops unnecessary tripping from making a nuisance of itself.

• Clear contact position indication for easy diagnostics
• One-pole configuration makes it practical for breaking a single circuit
• Short-circuit breaking capacity up to 10kA per EN 60898, so protects against significant excess current faults
• IP20 rating indicates it's touch-proof and safe to handle

How do I mount this MCB?

This MCB offers quick and adaptable installation without tools as you can choose from three slots when mounting it onto a standard top-hat DIN rail.

Note

Eaton formerly known as Moeller

Standards

IEC / EN 60898

MCB-C5/1

Datasheet - 236052 PXL-C5/1

Instruction Sheet - PXL-C5/1
