932967100 GSA 2000 N, Hirschmann GSA 2P+E DIN 43650 A, Male Solenoid Valve Connector, 400 V ac/dc Voltage, Разъем

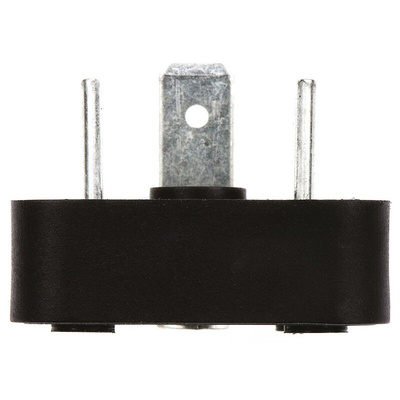

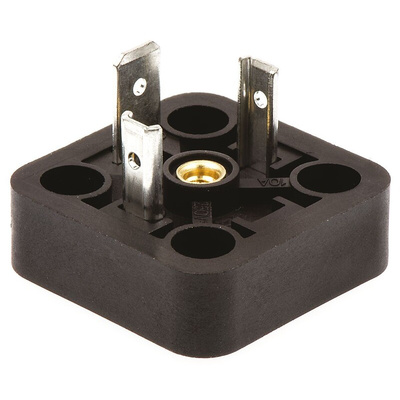

Belden Hirschmann Type A Solenoid Valve Connector, 400V AC/DC Voltage Rating - GSA Series - 932967100 GSA 2000 N

Use this solenoid valve connector from Belden's Hirschmann range to link a solenoid valve to a power source in your pneumatic equipment. Thanks to a wide operating temperature range of -40ºC to +125ºC, it's safe to use in demanding environments. The unit features an earth pole, which helps deflect potentially harmful current to the ground to protect personnel from electric shocks.

Features & Benefits

• Glass-filled nylon body is resistant to hard impacts for durability
• Current rating of 16A to withstand high-current systems
• Tin contact surface is corrosion-resistant for an extended service life

Applications

• High-temperature ovens
• HVAC systems
• Oil and gas industry

What's a Type A solenoid valve connector?

Type A solenoid valve connectors have three inward pins that are spaced 18mm apart. They're typically bigger than Type B and Type C connectors, so they're suitable for larger machines.

GSA2000/3000 - Data sheet

Datasheet

Catalogue - Valve Connectors
