PXD301/550/01/1, Bulgin IEC C13 5 Gang Power Distribution Unit, Filtered, 250 V ac, Fused

IEC 320 Free Standing or Wall Mount Distribution Units

Available with IEC mains inlet plug, or integral 2 m 3-core, black mains lead. Rectangular style has 5 outlets, square style has 6 outlets.

The IEC mains distribution units provide a highly versatile space saving solution when multi-power outlets are required. Moulded in rugged black ABS housings incorporating fully shuttered outlets. For use with office equipment audio units, laboratory instruments, lighting, small domestic appliances, mini- or micro-computers.
5-way (rectangular) and 6 way(square) units feature shuttered outlets, neon indicator and integral fuse. Filtered IEC plug inlet, stock no. 487-609 is fitted additionally with mains inlet filter (to BS613) for the optimum suppression of mains borne RFI and protection of sensitive equipment.
The units may be wall, floor or panel mounted.

Approvals

SEMKO

Bulgin Power Distribution Unit

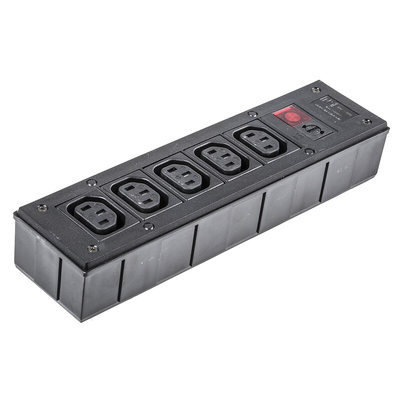

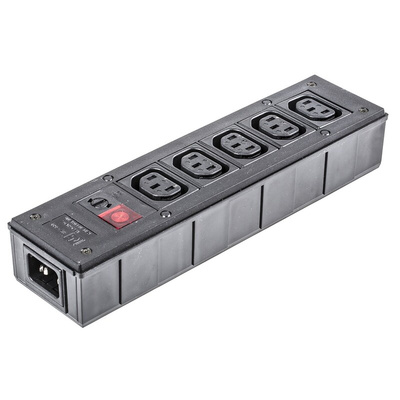

The Bulgin PXD series power distribution unit is black, 5 gangs shuttered C13 outlets with neon power switch and wall mount device. It has an electrical voltage rating of 250VAC and a current rating of 10A. The height, length and width of the socket are 40mm, 226mm and 58.5mm, respectively.

Features and Benefits

Fuseholder size is 5mm x 20mm
ABS housing fuse
Filtered
Rectangular style socket

Applications

Office equipment audio units
Laboratory instruments
Lighting
Small domestic appliances
Mini-or micro-computers

Certifications

SEMKO

Datasheet IEC Distribution Units
