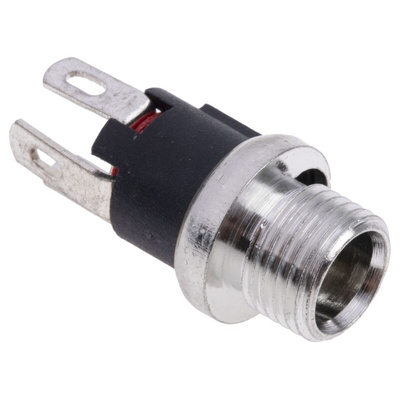

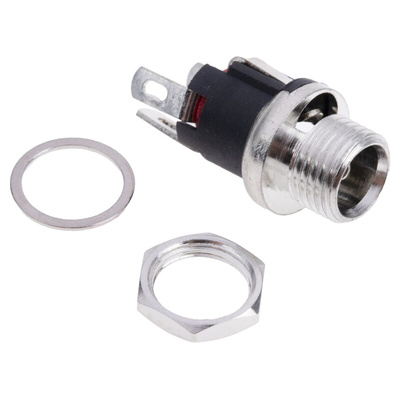

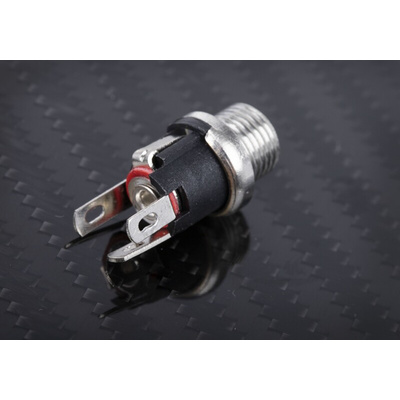

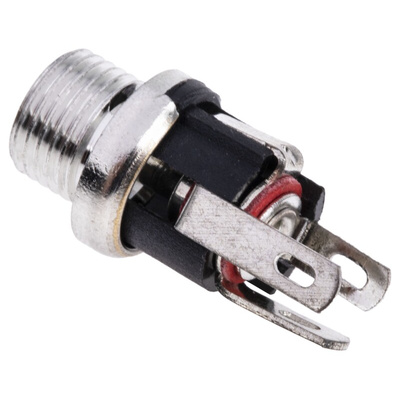

RS PRO DC Socket Rated At 5.0A, 12.0 V, Panel Mount, length 21.3mm, Nickel, Разъем

RS Pro Panel Mount DC Power Socket

Brought to you under the trust of the RS PRO brand, this panel mount socket is designed to couple with push-fit DC power plugs. This socket is ideal for powering small appliances such as portable radios.

The socket has a sleeve/shunt function that permits automatic switchover from AC to DC when the plug is inserted or withdrawn. The split centre pins are shaped to hold the mating plug firmly. There are many types of DC Connectors, along with this one they are usually referred to as a Barrel Connector or a Tip Connector.

Features and Benefits

• The maximum panel thickness is 3.1mm
• Contact resistance of 30mΩ Max
• Insulation resistance of 100MΩ @ 500Vdc
• Dielectric withstand of 500 V ac
• Contact Rating is 5 A, 12 V ac Resistive
• The contact material is a silver plated copper alloy, these materials combined have the advantages of the conductive copper and the bright and shiny surface of silver which gives an aesthetically pleasing finish. In addition to the look, the silver also provides a high corrosive resistance.
• A long shelf life of 10000 insertions and withdrawals
• Connector bodies are moulded in ABS plastic

Typical Applications

You’ll find that DC Power Sockets are usually embedded into small-medium electronic appliances which could be connected to a mains power supply. DC Power Sockets are designed to ensure a safe connection, with smooth disconnect and connect action which is why they are typically used to power and change particular portable computers, electronic instruments and sound systems.

Note

Not to be used as mains connectors

RS PRO Panel Mount DC Power Socket

Brought to you under the trust of the RS PRO brand, this panel mount socket connector is designed to couple with push-fit DC power plugs. It is ideal for powering small appliances such as portable radios. The socket has a sleeve/shunt function that permits automatic switchover from AC to DC when the plug is inserted or withdrawn. The split centre pins are shaped to hold the mating plug firmly. There are many types of DC Connectors, along with this one they are usually referred to as a Barrel Connector or a Tip Connector.

Features and Benefits.

The maximum panel thickness is 3.1mm
• Contact resistance of 30mΩ Max
• Insulation resistance of 100MΩ @ 500Vdc
• Dielectric withstand of 500 V ac
• Contact Rating is 5 A, 12 V ac Resistive
• The contact material is a silver plated copper alloy, these materials combined have the advantages of the conductive copper and the bright and shiny surface of silver which gives an aesthetically pleasing finish. In addition to the look, the silver also provides a high corrosive resistance.
• A long shelf life of 10000 insertions and withdrawals
• Connector bodies are moulded in ABS plastic

Typical Applications.

You’ll find that DC Power Socket connectors are usually embedded into small-medium electronic appliances which could be connected to a mains power supply. DC Power Sockets are designed to ensure a safe connection, with smooth disconnect and connect action which is why they are typically used to power and change particular portable computers, electronic instruments and sound systems.

RS PRO DC Power Socket Products.

•Stock Number 487832 features a screw-lock capability and matches perfectly to stock number 487820 cable-mounted plug.
•Stock Number 448382 is a right angled PCB mount dc power socket.
•Stock Number 448376 is a straight PCB mount dc power socket.

RS PRO Cable Mount Plugs.

•Stock number 487858 Cable mount plug 2.1mm standard.
•Stock number 487826 Cable mount plug red 2.1mm standard.
•Stock number 487820 Cable mount plug 2.1mm screw-lock.

Dimensional Drawing

RS PRO Datasheet
