RS PRO Right Angle DC Socket Rated At 2.5A, 16.0 V, PCB Mount, length 14.5mm, Nickel, Разъем

RS Pro DC Power Socket, PCB Mount

Brought to you under the trust RS Pro brand, this PCB socket is designed to couple with push-fit DC power plugs. It is ideal for powering small appliances such as portable radios.

Features and Benefits

• Rating: 16V DC 2.5A max.
• Contact Resistance: 50mΩ max.
• Insulation Resistance: 50mΩ at 500V DC min.
• PA6T Housing
• Tin plated Terminals

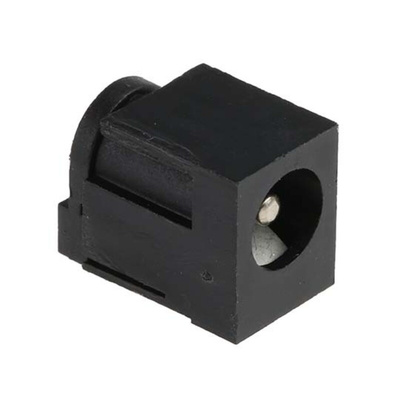

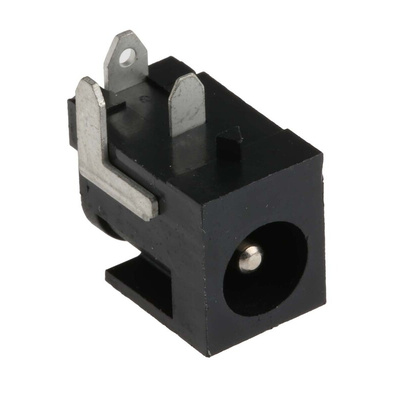

PCB Mount Right Angle DC Power Socket.

RS Pro PCB Mount DC power socket is a right angle socket connector designed to couple with push-fit 2.1 mm power plugs. The contacts for the DC power sockets are nickel plated with copper contact material and have a current rating of 2.5 A. This PCB Mount socket has sturdy tabs providing reliable and secure connection. This PCB Mount DC power socket connectors has many small appliance applications including portable radios. DC Power sockets are also known as a Barrel Connector or Tip connectors.

Features and Benefits.

•DC Power socket.
•Designed to be used with 2.1 mm (push-fit) Plug.
•Right angle.
•PCB Mounting contacts.
•Nickel plated contacts.
•Copper contact material.
•PIN Diameter 2.1 mm.
•2.5 A Current rating.
•Voltage rating 16 V dc
•Contact resistance 50 mΩ max.
•Insulation resistance 50 mΩ at 500V DC min.
•Secure connection.
•Housing material PA6T (heat resistant modified polyamide).

The PCB Mount power sockets are Not to be used as a mains connector.

Typical Applications.

You’ll find that DC Power Sockets are usually embedded into small-medium electronic appliances which could be connected to a mains power supply. DC Power Sockets are designed to ensure a safe connection, with smooth disconnect and connect action which is why they are typically used to power and change particular portable computers, electronic instruments and sound systems.

RS PRO DC Power Socket Products.

•Stock No. 487832 features a screw-lock capability and matches perfectly to stock number 487820 cable-mounted plug.
•Stock No. 448382 is a right angled PCB mount dc power socket.
•Stock No. 448376 is a straight PCB mount dc power socket.

RS Pro Cable Mount Plugs.

•487858 Cable mount plug 2.1mm standard.
•487826 Cable mount plug red 2.1mm standard.
•487820 Cable mount plug 2.1mm screw-lock.

Plugs & Sockets

Miniature plugs suitable for powering portable radios, calculators plus test and measurement instruments from a fixed, low-voltage d.c. source. Chassis mounting sockets for the 2.1mm plugs and adaptor leads terminated with 2.1mm and 2.5mm plugs and sockets are also available. Contacts are nickel/silver plated brass.Connector bodies are moulded in ABS plastic

Dimensional Drawing

RS Pro Datasheet
