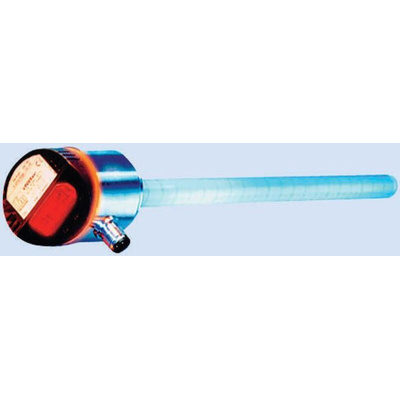

LK1023, ifm electronic Electronic Level Sensor, PNP Output, Stainless Steel Body

IFM Electronic Level Sensor

The ifm electronic level sensor has a supply voltage ranging between 18VDC and 30VDC it operates to a capacitive measuring principle. The sensor with protection rating IP67 is optimised for use in hydrous coolants and oils on machine tools and hydraulic power packs. The current level is visible on the 4-digit alphanumeric display. 2-point level control can, for example, be implemented via a digital switching output. The second output can be used for running-dry protection or overflow control.

Features and Benefits

Housing connection (flat-pin connector 6.3 mm following DIN 46244)
Probe length: L = 472mm
Has 2 switching outputs
Materials (wetted parts): PP
Housing materials stainless steel (304S15)
FKM
NBR
PBT
PC
PEI
PP
TPE/V

Applications

Hydrous coolants
Oil
Water
Media similar to water

Certifications

DIN EN 60068-2-29
DIN EN 60068-2-6
EN 61000-4-2 ESD
EN 61000-4-3 HF
EN 61000-4-4
EN 61000-4-6 HF
DIN EN 60068-2-29
DIN EN 60068-2-6
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007

Datasheet
